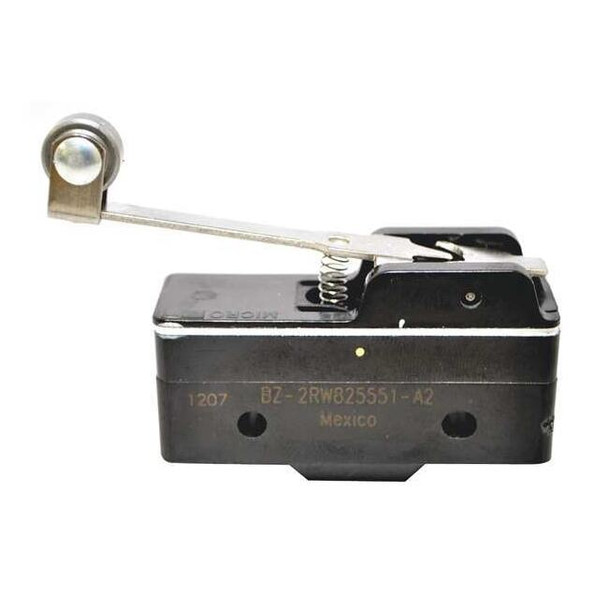

Snap Action Switch - SPDT, Long Roller Lever, 15A, BZ Series Basic Switch BZ-2RW825551-A2

Accurate and repeatable, the Honeywell Snap Action Switch from the BZ Series is rated for consistent operation within specified parameters. This switch features a long roller lever actuator with spring return action and features a differential travel range as specified. Constructed with a phenolic housing, it provides bottom-facing screw terminals for secure electrical connections. Key Features: - Contact Form: SPDT (1NO/1NC) - AC Contact Rating: 15 A at 240 V - DC Contact Rating: 0.5A @ 125V DC; 0.25A @ 250V DC - Actuator Type: Long Roller Lever, length of 1.9" - Operating Force: Maximum of 8 ozf; Release Force: 0.75 ozf - Differential Travel Range: Minimum of 0.004 in, maximum of 0.015 in - Overtravel: Up to 0.156 in; Pretravel up to 0.218 in - Body Dimensions: Width—2 in, Height—1 in, Depth—0.7 in - Mounting Hole Distance: Center-to-center spacing of 1 inch; hole diameter is 1/8 inch - Electrical Connection: Bottom facing screw terminal (6–32 x .218" cup washer) - Operating Temperature Range: -67°F to +185°F (-55°C to +85°C) - Standards Met: CE, CSA, ENEC, UKCA, UL Listed
