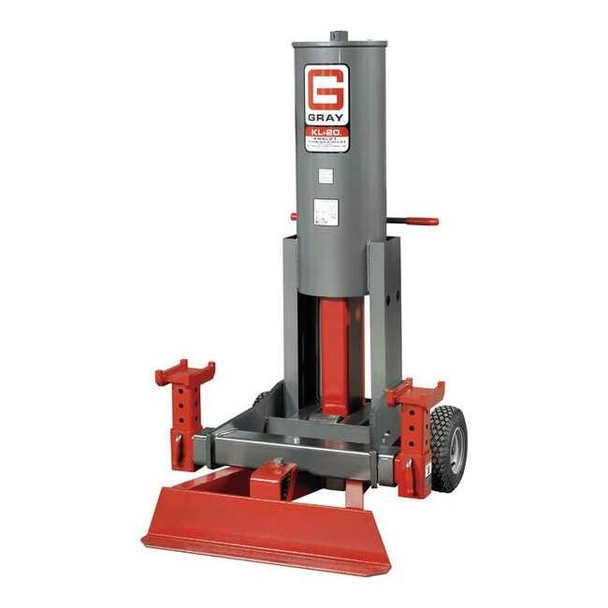

Gray KL-20

The KL-20 Air Operated End Lift is a heavy-duty vehicle lift designed for trucks with a maximum capacity of 20,000 lbs (10 tons). Built with a rugged steel frame and a stable 42" x 37" base, it offers durability and reliable performance for truck maintenance and repair tasks. Operating via an air-powered mechanism with a manual handle actuator, it provides smooth, controlled lifting between 14" and 50" heights. The lift features adjustable saddles and 5-inch pneumatic wheels for easy mobility. Engineered to meet ANSI/ASME PALD standards, the unit supports up to 200 psi operating pressure and is made in the USA. Key Features: - Maximum lifting capacity: 20,000 lbs (10 tons) - Robust steel frame with 42" x 37" stable base - Adjustable lifting saddles for versatility - Large 5-inch pneumatic wheels for smooth maneuvering - Air-operated with manual handle actuator for controlled lifting - Lifting height range: 14" to 50" - 22-inch steel handle for comfortable handling - Complies with ANSI/ASME PALD safety standards - Maximum operating pressure: 200 psi - Compact dimensions: 65" height x 37" width - Made in the USA
