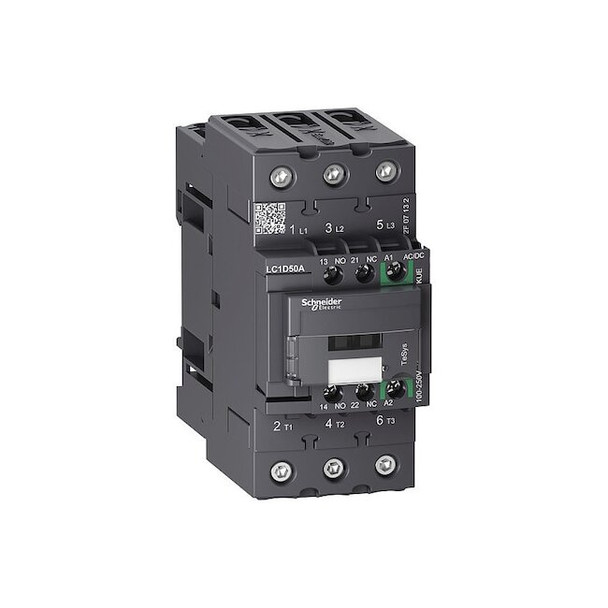

Schneider Electric LC1D50AKUE

The item is an IEC Magnetic Contactor (Schneider Electric, TeSys Deca). It is a 3-pole, non-reversing device rated for switching within specified electrical parameters. It is rated for coil voltages between 100–250 V AC/DC and includes 1 normally open and 1 normally closed auxiliary contact (2 total). The control circuit uses screw clamp terminals, while power circuit connections are EverLink BTR. It does not include an enclosure; suitable for use within appropriate enclosures as per application requirements. It conforms to IP20 ingress protection standards (note: actual performance depends on installation), with mounting options for DIN rail or plate. Key features - Poles: 3 - Coil Voltage: 100–250 V AC/DC - Auxiliary Contacts: 1NO/1NC (2 total) - Reversing: Non-Reversing - Contactor Style / Series: IEC / TeSys Deca - Control Circuit Terminals: Screw Clamp; Power Circuit: EverLink BTR - Max Voltage Rating: 690V AC - Full Load Amps: Inductive 50 A; Resistive 80 A - Frequency: 50/60 Hz - IP Rating: IP20 - Enclosure: Does not include an enclosure; suitable for use within appropriate enclosures as per application requirements - Mounting: DIN Rail, Plate - Weight: 0.997 kg - Dimensions (L×W×H): Depth 4.72 in; Width 2.17 in; Height 4.8 in - Operating Times: typical operating times based on standard testing conditions (actual times may vary) - Shock/Vibration: 15 G (closed); 10 G (open) - Environmental: Mercury Free, Pollution Degree 3 - Inclusions: Everlink Power Connections; Auxiliary Contacts; Protective Cover - Standards: UL Listed; EN/IEC 60947-4-1; EN/IEC 60947-5-1; CSA; CCC; KC; UKCA
