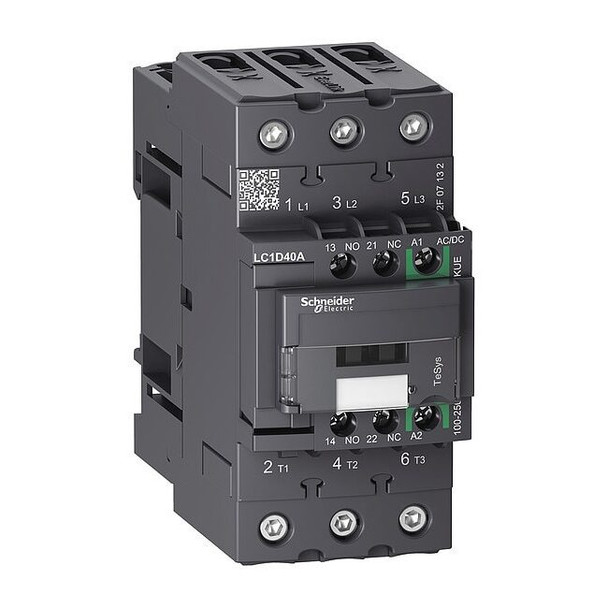

Schneider Electric LC1D40AKUE

Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with 1NO/1NC auxiliary contacts. It uses a coil voltage of 100–250 V AC/DC and is rated for operation within specified motor control and resistive-load application parameters. - Coil Voltage: 100–250 V AC/DC - Poles/Main Contacts: 3 poles; 3 normally open main contacts - Auxiliary Contacts: 2 total; configuration 1NO/1NC - Reversing: Non-Reversing - Frequency: 50/60 Hz - Rated Voltage: 690 V AC - Full Load Amps: Resistive 60 A; Inductive 40 A - Rated Making Capacity: 800 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling) - Electrical Operating Durability: 2,000,000 (Power Circuit); 700,000 (Signalling Circuit) - Mechanical Durability: 6 Mcycles - Impulse Withstand Voltage: 6 kV - Enclosure / IP: Open design; IP20 rating, suitable for indoor environments - Dimensions: Depth 4.72 in; Height 4.8 in; Width 2.17 in - Net Weight: 0.992 kg - Mounting: DIN Rail, Plate - Environmental: Mercury Free; Pollution Degree 3 - Wiring: Compatible with standard wiring connections; optional protective covers as applicable - Standards: UL Listed, CE, CSA, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CCC, KC, UKCA - Phase: Three - Impedance: 1.5 mΩ - Hold VA: 1.8 VA - Inrush VA: 18 VA - Switching: Signalling Circuit 5 mA; 17 V - Non-Overlap Time: 1.5 ms - Overvoltage Category: CAT III - Maximum Temperature: maximum temperature ratings are based on standard operating conditions (note: actual device temperature limits should be verified) - Maximum Operating Temperature: 140°F - Maximum Voltage Rating: 690 V AC - Releasable / Non-Reversing: Non-Reversing - Fuse Amps / Protection: Not listed (include if needed)
