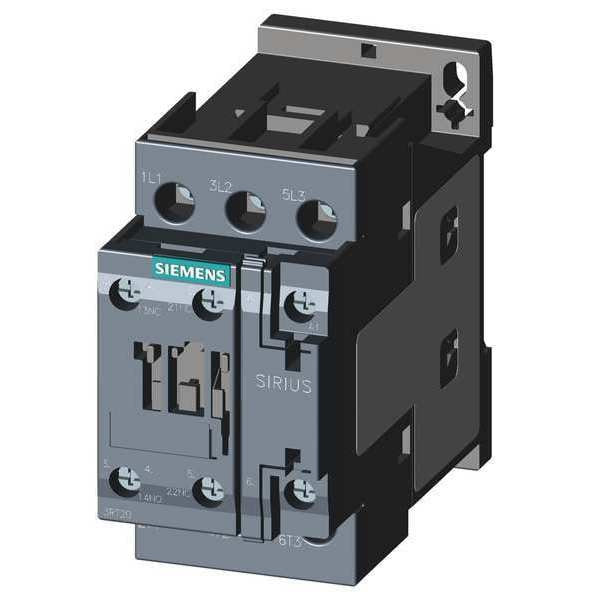

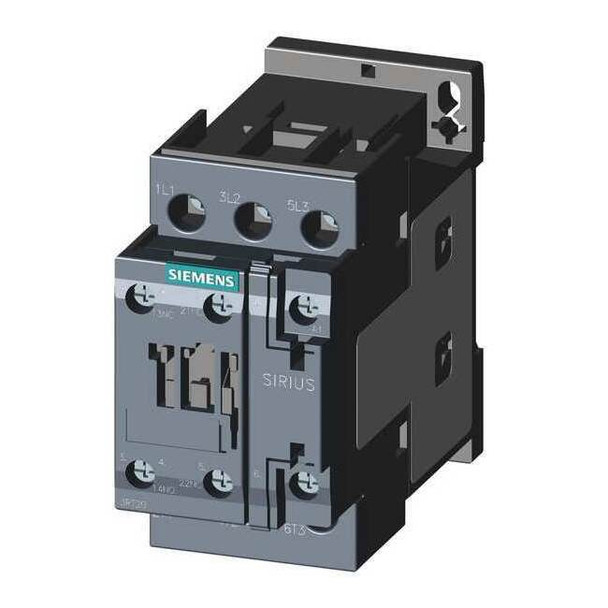

IEC Magnetic Contactor, 1NC-1NO, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20271AK60

The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electromagnetic switch used to control power circuits. It is rated for operation within the specified voltage range of 110–120 V AC and includes two auxiliary contacts configured as 1NO/1NC (2 total). This unit is part of the SIRIUS 3RT20 series (frame S0), with screw-terminal connections and designed for use in environments with an IP20 rating, suitable for IEC-standard control panel applications. Key features - Coil Voltage: 110–120 V AC - Action: Non-Reversing - Phase: Three - Poles/Main Contacts: 3 normally open main contacts - Auxiliary Contacts: 2 total (1NO/1NC) - Electrical Connection: Screws - Series/Frame: SIRIUS 3RT20, Frame Size S0 - Enclosure: Designed for use in IP20 environments; suitable for IEC-standard control panel applications - Maximum Voltage: Rated for operation up to 690 V AC within specified conditions - Frequency: 50/60 Hz - Operating Temperature: -13°F to 140°F - Mechanical Durability: Approximately 10 million cycles under standard testing conditions - Overall Dimensions: Width 2.15 in; Height 3.55 in; Depth 4.20 in - Mounting: Mounting Style DIN Rail, Surface; Mounting Position Vertical - Standards: REACH Art 33, WEEE (2012/19/EU) - Includes Auxiliary Contacts: Yes
