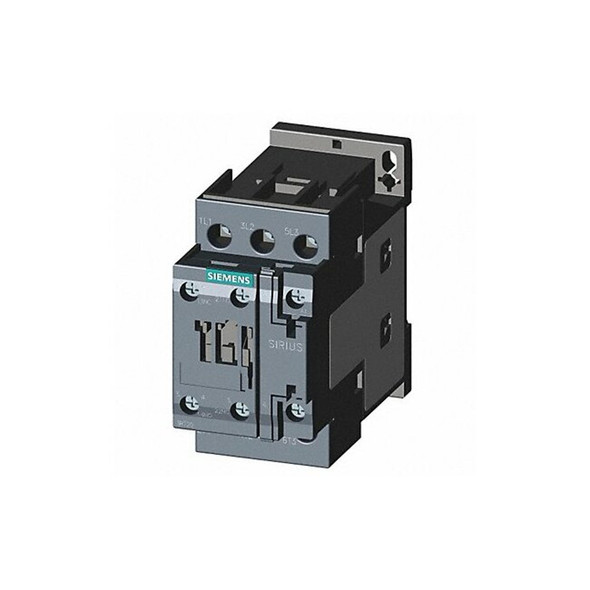

IEC Magnetic Contactor, 1NC-1NO, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20261AK60

SIEMENS IEC Magnetic Contactor is an electrically operated switching device rated for use within IEC standard specifications. It features an electromagnetic coil compatible with specified load types. This non-reversing, 3-pole unit features a 110–120 V AC coil, 1NO/1NC auxiliary contacts, and screw-terminal connections. It conforms to the specifications of the SIRIUS 3RT20 series (frame size S0); suitable for mounting on DIN rails or surfaces as specified. - Coil Voltage: 110–120 V AC - Action: Non-Reversing - Poles / Main Contacts: 3 poles; 3 normally open main contacts - Auxiliary Contacts: 2 total (1NO/1NC) - Terminal Connection: Screw - Enclosure / IP: rated for operation with no enclosure; IP20 rating applicable under specified conditions. - Frame / Series: S0; SIRIUS 3RT20 - Mounting Style / Position: DIN Rail, Surface; Vertical - Maximum Voltage Rating: rated for operation up to 690 V AC within its specified parameters. - Frequency: 50/60 Hz - Maximum Operating Watts: rated for use within the stated wattage ranges under appropriate conditions. - Mechanical Durability: 10,000,000 cycles - Dimensions: Width 1.77 in; Height 3.60 in; Depth 3.82 in; Overall Depth 4.15 in; Overall Width 2.20 in
