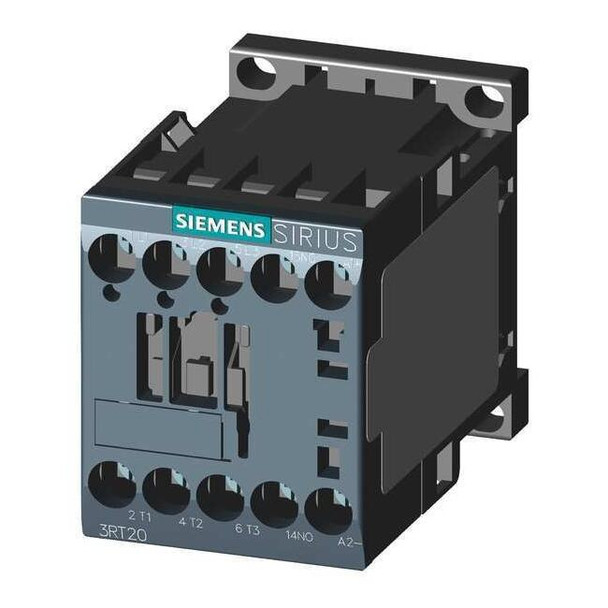

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw 3RT20171BB41

This IEC Magnetic Contactor from the SIRIUS 3RT20 series (Frame S00) is a 3-pole, non-reversing control device with a 24 V DC coil. Has 3 normally open main contacts and 1 auxiliary contact, with screw terminal connections. Compatible with DIN Rail or surface mounting methods; enclosure is not included; IP20-rated environments. - Action: Non-Reversing - Poles/Main Contacts: 3 NO - Auxiliary Contacts: 1 NO - Coil Voltage: 24 V DC - Frame Size / Series: S00 / SIRIUS 3RT20 - Termination: Screws - Mounting Style: Compatible with DIN Rail or surface mounting methods - Enclosure: Not included - IP Rating: IP20 - Rated for operation within specified voltage ranges up to 690V AC - Phase: Three - Full Load Amps: Inductive 12 A; Resistive 22 A - Operates within the specified temperature range of -13°F to 140°F - Overall Dimensions: Width 2.3 in; Height 2.4 in; Depth 3.3 in - Includes Auxiliary Contacts: Yes - Reversing: No - Embedded Surge Suppressor: No - Mechanical Durability: 30,000,000 cycles
