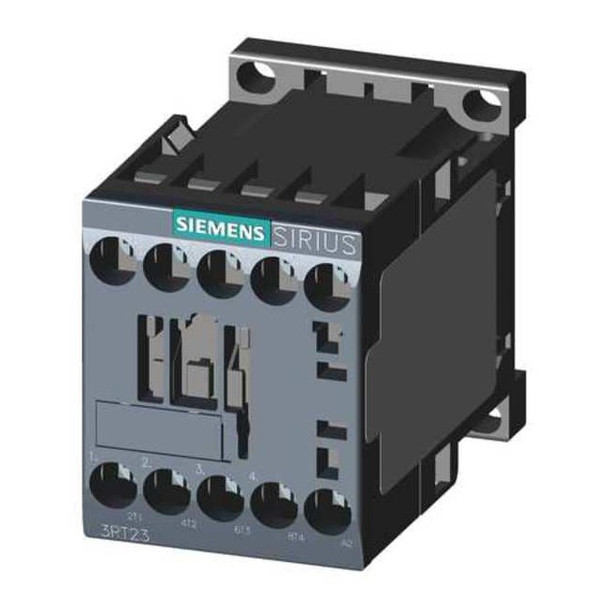

IEC Magnetic Contactor, 4NO, 110V-120V AC, 4 P, Non-Reversing, Screw 3RT23171AK60

Siemens IEC Magnetic Contactor, 4NO, 110–120 V AC coil, 4-pole, non-reversing. This IEC-standard, electrically operated switching device rated for controlling power circuits with a 4-pole main contact arrangement and four normally open auxiliary contacts. It features screw terminals, supports DIN Rail or surface mounting. The enclosure options include No Enclosure; rated for use in environments with IP20 protection level for 3-phase applications as part of the SIRIUS 3RT23 series (frame size S00). - Coil Voltage: Rated for operation within the specified voltage range of 110–120 V AC. - Action / Reversing: Non-reversing configuration. - Poles / Main Contacts: 4 poles, 4 normally open main contacts; 0 normally closed - Auxiliary Contacts: 4 NO (auxiliary) - Frame Size / Series: S00, SIRIUS 3RT23 - Phase: 3; Frequency: 50/60 Hz - Full Load Amps: Inductive 12 A; Resistive 20 A - Max Operating Power Ratings: Up to approximately 4 kW at 400 V AC under specific conditions; actual performance may vary depending on application parameters. - IP Rating / Enclosure: IP20; No Enclosure - Terminal Connection: Screw - Mounting Style: DIN Rail, Surface - Mounting Details: Mounting hole diameter 0.20 in; Height 1.97 in; Width 1.38 in; Mounting Position: Vertical - Overall Dimensions: Overall Dimensions are provided but should be verified against installation requirements before use. - Operating Temp: Operating temperature range includes typical ambient conditions but should be confirmed suitable for specific environments prior to deployment. - Mechanical Durability: 30,000,000 cycles - Standards: REACH Art 33, WEEE (2012/19/EU) - Includes Auxiliary Contacts: Yes - Item: IEC Magnetic Contactor - Reversing: No - Width: 1.77 in
