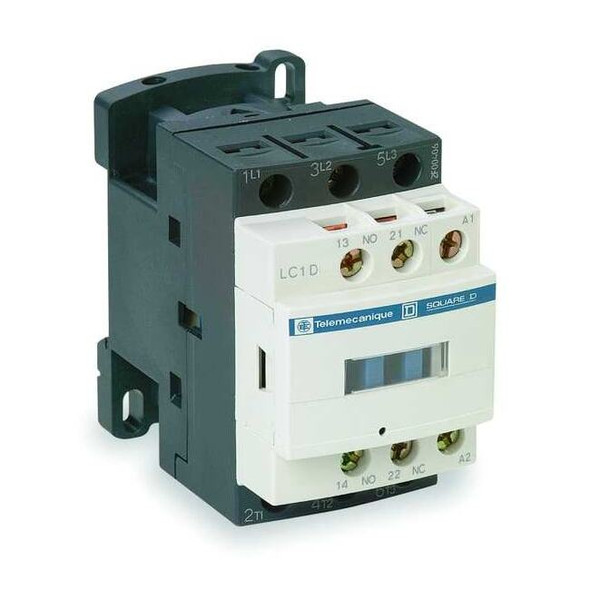

IEC Magnetic Contactor, 1NC-1NO, 480V AC, 3 P, Non-Reversing, Screw Clamp LC1D12T7

The Square D IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switching device classified as an IEC Magnetic Contactor. It uses a 480 V AC coil and includes 1 normally open and 1 normally closed auxiliary contact (1NO/1NC). Featuring screw clamp terminals, it is designed for motor control and resistive loads, operates within the specified frequency range; does not include a built-in suppressor module or enclosure. - Poles and main contacts: 3 poles; 3 normally open main contacts - Auxiliary contacts: 2 total (1NC/1NO) - Coil voltage: 480 V AC - Action: Non-Reversing - Voltage/current rating: Max 690 V AC; rated for making and breaking capacities up to 250 A at 440 V in accordance with applicable standards. - Frequency: 50/60 Hz - Connection and mounting: Screw Clamp terminals; Mounting on DIN Rail and Plate; Mounts On Plate, Rail - Enclosure/IP rating: No Enclosure; IP20 - Dimensions and weight: Depth 3.38 in; Height 3.03 in; Width 1.77 in; Net weight 0.325 kg - Durability: Mechanical durability approximately 15 million cycles; Electrical durability ratings are based on standard testing conditions. - Additional features: Embedded Surge Suppressor No; includes protective cover; equipped with auxiliary contacts as specified. - Other ratings and standards: Impulse withstand 6 kV; Insulation resistance > 10 MΩ (Signalling Circuit); Overvoltage CAT III; Standards include EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, CSA, CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1, and others; Series TeSys Deca; Phase Three; Reversing: No
