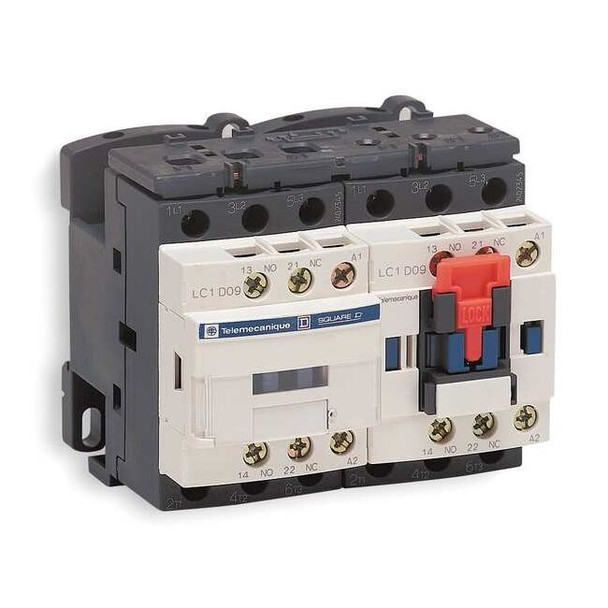

IEC Magnetic Contactor, 1NC-1NO, 24V AC, 3 P, Reversing, Screw Clamp LC2D18B7V

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is intended for use in motor control and resistive load applications. It's compatible with a coil voltage of 24V AC, and features an auxiliary contact configuration of 1NO/1NC. The unit comes preassembled with a reversing power busbar and does not include an embedded surge suppressor. With no enclosure, the device has an IP rating of IP20 and adheres to the TeSys frame/series/class/code. Its electrical durability ranges from 1 Mcycles (32 A, AC-1, Less than 440 V) to 1.65 Mcycles (18 A, AC-3, Less than 440 V), while its mechanical durability stands at 15 Mcycles. Key Features: - Operates on a frequency of 50/60 Hz - Full Load Amps: Inductive -18 A; Resistive -32 A - Horsepower suitability depends on phase and voltage, including but not limited to Single Phase -120V AC at up to 1hp, Three Phase -208V AC at up to 5hp, and Three Phase -600V AC at up to 15hp. - Operating temperatures can range from as low as-40 Degrees F to as high as140 Degrees F - Mounting style options include DIN Rail or Plate mounting. - Rated insulation volts stand at600/690V while maximum voltage rating reaches up to690V AC. - Comes equipped with a protective cover and mechanical interlock. - Has properties that include fire resistance and insulation resistance.
