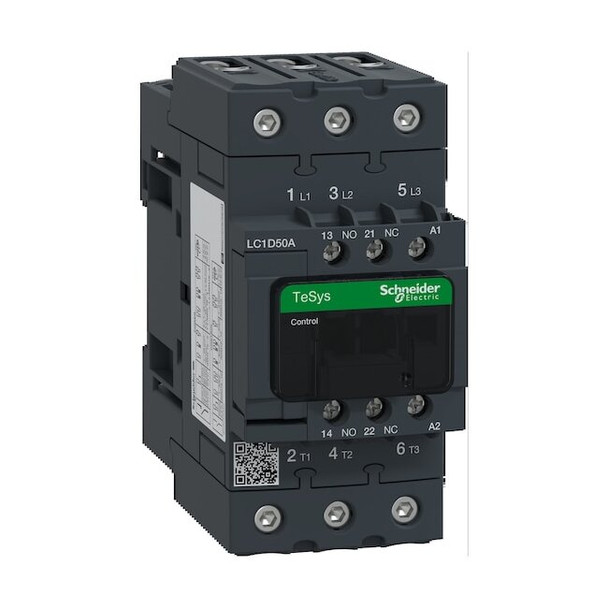

IEC Magnetic Contactor, 1NC-1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp LC1D50AG7

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-pole contactor intended for use in motor control and resistive load applications. It operates with a coil voltage of 120V AC and has an auxiliary contact configuration of 1NO/1NC. The product features screw clamp terminals for both the control circuit and power circuit, offering compatibility with various cable stiffness types. This magnetic contactor meets the requirements of IACS E10 and IEC 60947-1 Annex Q category D standards for damp heat resistance. Key Features: - Non-Reversing action suitable for specific application requirements. - Auxiliary Contacts Type: Complies with mechanically linked 1 NO + 1 NC according to standard IEC 60947-5-1; Mirror contact complies with standard of one normally closed (NC) according to standard IEC 60947-4-1. - Average Impedance: Offers low resistance at just 1.5 mOhm - Ith 80 A at a frequency of50 Hz for the power circuit. - Coil Voltage: Operates on a standard electrical supply of120V AC. - Connections - Terminals: Includes multiple screw clamp terminals compatible with different cable stiffness types in both control and power circuits. - Contact Compatibility: M2 type contacts are designed for use in industrial settings. - Electrical Durability: Tested under specific conditions (AC3 or AC3e) to endure between approximately1100000 to1450000 cycles, actual results may vary based on usage. - Rated Insulation Volts: Rated for operation within specified voltage ranges up to600/690V. Safety depends on proper usage following manufacturer's guidelines.
