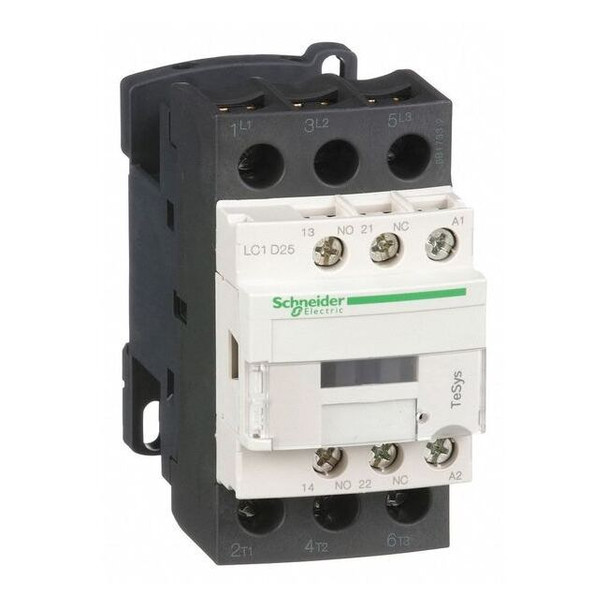

IEC Magnetic Contactor, 1NC-1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp LC1D25G7

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for use within IEC-standard control system parameters. Energized by a 120V AC coil, it includes auxiliary contacts (1NO/1NC) and is compatible with screw clamp terminals. It is part of the TeSys Deca family and does not include an enclosure. - Poles: 3; Reversing: Non-Reversing; Main Contacts: 3 normally open - Auxiliary Contacts: 2 total (1NO/1NC) - Coil Voltage: 120V AC - Electrical Connection: Screw Clamp Terminals - Frame / Series: TeSys Deca; Contactor Style: IEC - Rated Voltage: rated for operation at voltages up to 690V AC and 300V DC within specified conditions - IP Rating / Enclosure: IP20; does not include an enclosure; suitable for installation according to applicable standards - Mounting: DIN Rail, Plate - Frequency: 50/60 Hz - Full Load Amps: rated for continuous operation at the specified current levels under normal conditions - Protective Cover: Yes; Embedded Surge Suppressor: No - Net Weight: 0.37 kg - Dimensions: Depth 3.62 in; Height 3.35 in; Width 1.77 in - Operating Time: typical switching times based on testing, but actual performance may vary depending on application conditions - Mechanical Durability: 15 Mcycles - Standards: conforms to relevant standards including EN and UL certifications as applicable - Environmental: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 - Other electrical specs: Switching Current 5 mA (Signalling Circuit); Switching Voltage 17 V (Signalling Circuit)
