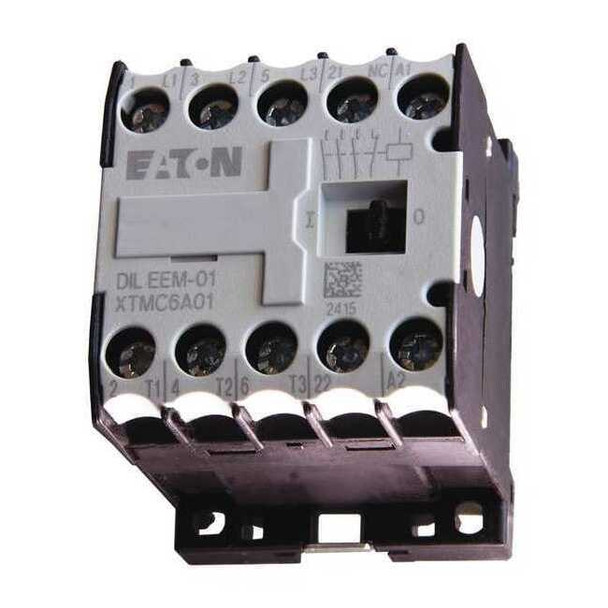

IEC Miniature Magnetic Contactor, 1NC, 120V AC, 3 P, Non-Reversing, Screw XTMC6A01A

The Eaton XT IEC Miniature Magnetic Contactor is a 3-pole, non-reversing, IEC-style miniature contactor used to switch low-power circuits. It operates with a 120 V AC coil, uses screw terminals for wiring, and includes an embedded surge suppressor and one auxiliary contact (1NC). The device supports DIN Rail or Panel mounting; no enclosure is included. Key features: - Coil voltage: 120V AC - Action: Non-Reversing - Poles: 3 - Auxiliary contacts: 1NC (Auxiliary Contact Configuration: 1NC) - Contains an embedded surge suppressor (functionality may vary). - Electrical connection: Screw terminals - Frame/Series: Frame A, XT series - Mounting style/position: DIN Rail, Panel; Vertical - Enclosure: No Enclosure - Frequency: 50/60 Hz - Rated for operation up to 690V AC/DC within specified conditions. - Amperage ratings: 6.60A (Amperage Rating); Full Load Amps Inductive: 6A; Resistive: 20A - Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS
