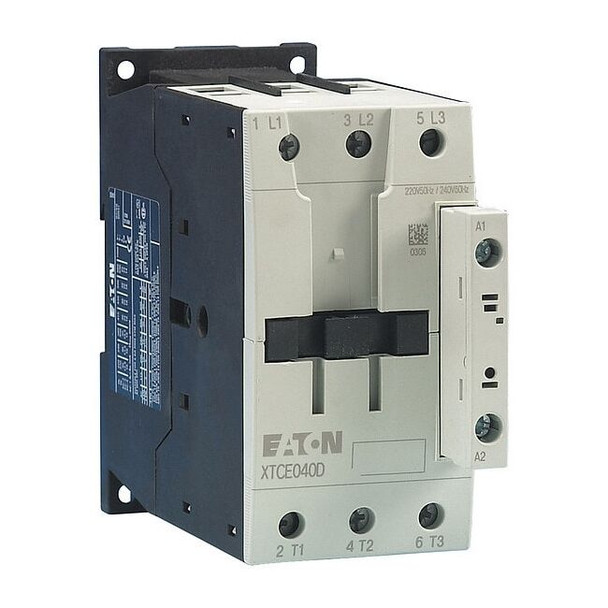

Eaton XTCE040D00B

The Eaton XT IEC contactor is an IEC magnetic, 3-pole, non-reversing switch designed to control power circuits. It uses a 240V AC coil with screw terminals and has no auxiliary contacts. This frame D device is part of the XT series and supports mounting on a DIN rail or panel. It is rated for operation within the specified voltage and frequency ranges; contains a surge suppression component (if applicable); and is supplied without an enclosure (if applicable). Certifications include UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS. - Poles: 3 - Action / Reversing: Non-Reversing; Reversing: N/A - Coil voltage: 240 V AC - Amperage (full load): 40 A inductive; 60 A resistive - Auxiliary contacts: No - Contact configuration: 0 NO, 0 NC - Electrical connection: Screw terminals - Frame / Series / Code: Frame D; Series XT - Frequency: 50/60 Hz - Maximum voltage rating: 690 V AC - Surge suppression: contains a surge suppression component (if applicable) - Enclosure / IP rating: No Enclosure; IP20 - Mounting style: DIN Rail, Panel - Dimensions (W×H×D): 2.17 in × 4.09 in × 5.78 in - Mounting hole: diameter 0.16 in; hole distance (height × width): 4.13 in × 1.77 in - Standards: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS - Reversing: N/A - HP rating (3-phase at 240V): Conforms to industry standards for motor ratings at specified voltages
