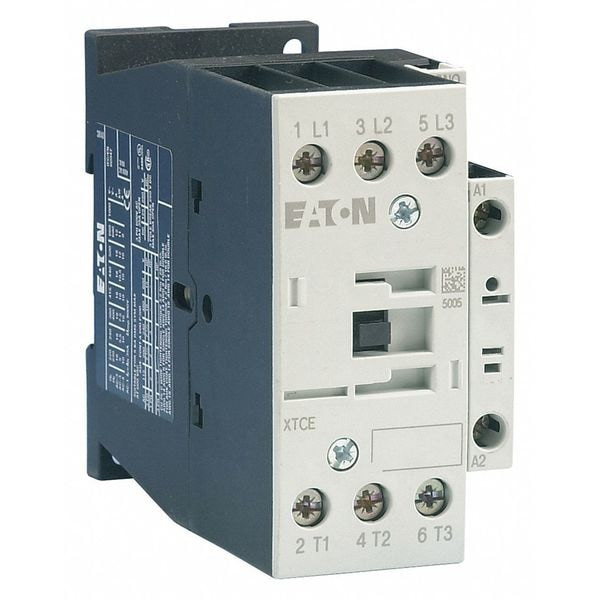

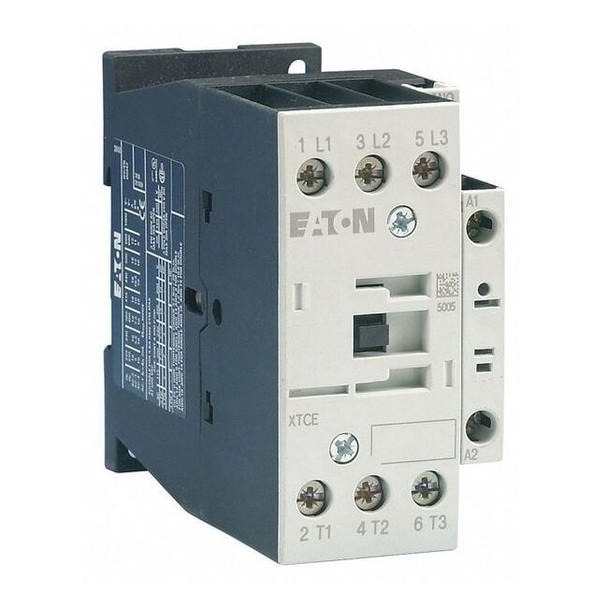

IEC Magnetic Contactor, 1NO, 120V AC, 3 P, Non-Reversing, Screw XTCE025C10A

The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 120V AC coil. It includes one normally open auxiliary contact (1NO) and uses screw terminals. This device is part of the XT series (Frame C) and is rated for operation within the specified voltage and current ranges, compliant with IEC standards. - Action: Non-Reversing - Poles / Contact configuration: 3 / 1 NO main contact - Auxiliary contacts: 1 NO (Includes Auxiliary Contacts: Yes; Auxiliary Contact Configuration: 1NO; Contact Configuration: 1 NO) - Coil voltage: 120V AC - Maximum voltage rating: 690V AC - Frequency: 50/60 Hz - Full Load Amps: Inductive 25A; Resistive 45A - Electrical operating durability: 10,000,000 mechanical cycles; 300 AC-4 (400V Ie); 800 AC-1 (400V Ie); 800 AC-3 (400V Ie) - Enclosure / IP rating: No Enclosure; IP20 - Mounting style: DIN Rail, Panel - Frame / Series: Frame C; Series XT - Certifications / compliances: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS - Dimensions: Height 2 in; Width 3.5 in; Depth 4 in - Reversing: No
