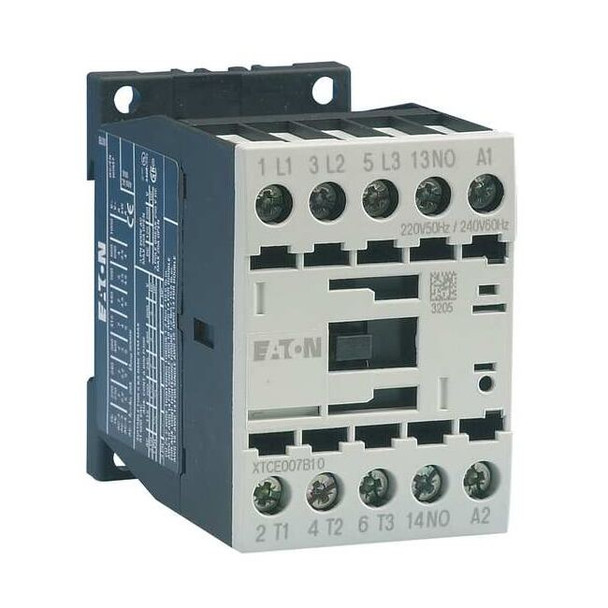

IEC Magnetic Contactor, 1NO, 480V AC, 3 P, Non-Reversing, Screw XTCE007B10C

The EATON - IEC Magnetic Contactor is a non-reversing, full voltage contactor intended for use in industrial settings. It has a coil voltage specification of 480V AC and an amperage rating of 7A. This product features a screw terminal electrical connection and comes without an enclosure, making it compatible with DIN Rail or Panel mounting styles. The contactor is certified by UL, CSA, IEC 60947, EN 60947 and marked by CE. With its IP20 rating, the device is rated for operation within temperature ranges from -13 to 122 Degrees F. Key Features: - Non-Reversing Action: The contactor does not have reversing capability. - Coil Voltage: Has a coil voltage specification of 480V AC. - Amperage Rating: Has an amperage rating of up to 7A inductive load and up to 22A resistive load. - Electrical Connection: Uses screw terminals for secure electrical connections. - Certifications: Certified under UL Listed;CSA Certified;IEC 60947;EN 60947 standards. - Mounting Style: Compatible with DIN Rail or Panel mounting styles. - Temperature Range: Rated for operation within temperature ranges from -13 Degrees F to +122 Degrees F. - Horsepower Ratings: Horsepower compatibility varies based on phase and voltage, ranging from1/4 hp at Single Phase -120V AC, up to5 hp at Three Phase -600V AC.
