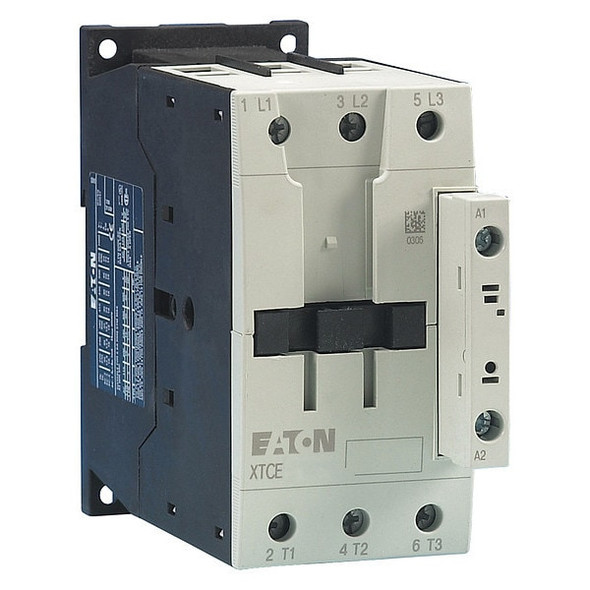

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Non-Reversing, Screw XTCE050D00T

The Eaton XT IEC contactor is an IEC magnetic contactor (electrically operated switching device) rated for operation within the specified parameters. It is a 3-pole, non-reversing unit with a 24 V AC coil, rated for 50 A, and it has no auxiliary contacts. Part of the XT series with frame size D, it is suitable for mounting on DIN rails or panels and does not include an enclosure. - Action: Non-Reversing - Amperage rating: 50A - Poles: 3 - Frame/Series: XT, Frame D - Coil voltage: 24V AC - Auxiliary contacts: No auxiliary contacts - Mounting style: DIN Rail, Panel - Enclosure: No enclosure - IP rating: IP20 - Terminal connection: Screw - Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947; RoHS; CE Marked - Maximum voltage rating: 690V AC - Mechanical durability: 10,000,000 cycles - Electrical durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie) - Dimensions: Width 2.17 in; Height 4.09 in; Depth 5.2 in - Operating temperature: Max 122°F; Min -13°F - Frequency rating: 50/60 Hz - Reversing: No - Product name: Eaton XT IEC contactor
