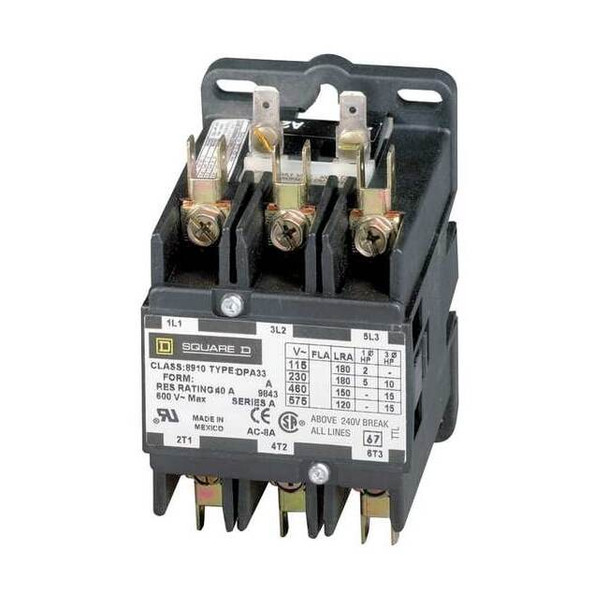

Square D 8910DPA93V14

The SQUARE D - 8910DPA93V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's primarily used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.Action: Non-Reversing – this indicates that the current flow direction remains constant during operation.Coil Voltage: The coil voltage requirement is 24V AC which effectively engages or disengages its electrical circuit.Electrical Connection: This contactor uses box lugs and quick connect terminals for attachment to an electrical circuit.Full Load Amps-Inductive/Resistive: It is designed for handling up to a capacity of up to, but not exceeding, 90 A when controlling inductive loads (like motors) and up to, but not exceeding,120 A with resistive loads.Horsepower Ratings: It is rated for controlling from 7.5 hp at single phase power supply of 115 volts up to a maximum of 50 hp at three-phase power supply within the range of either 460 volts or 575 voltsPole Contact Composition: Comprises of three Normally Open (NO) contacts which determine how electrical circuits are controlled during operationCertifications & Standards Compliance: Certified by UL; CSA which are known standards organizations that evaluate product safety and quality for use in various industrial applications.
