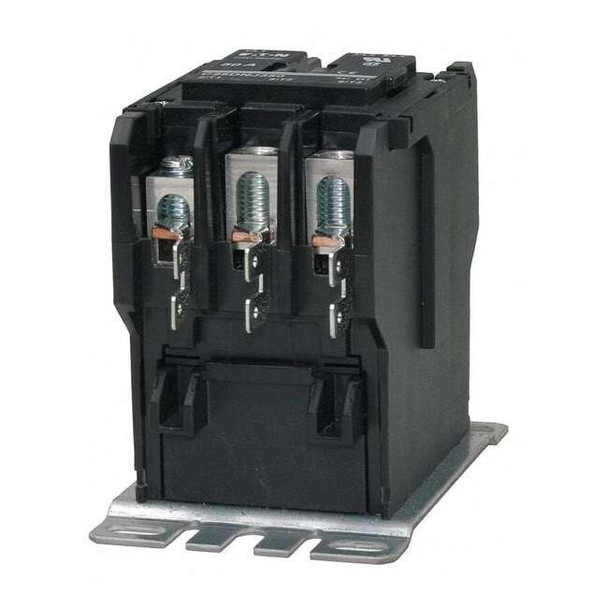

Eaton C25FNF375A

The EATON - C25FNF375A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.Action: Non-Reversing – The contactor functions with a constant current flow direction.Auxiliary Contact Module Capacity: 4 – Provides flexibility in managing multiple electrical loads or signals.Coil Voltage: 120V AC – Specifies the voltage range required for effective operation.Depth: 3.75 in – Indicates how far it extends into the mounting surface or enclosure.Frequency: 50/60 Hz – Rated for operation within this specified frequency range.Full Load Amps-Inductive: 75 A & Full Load Amps-Resistive: 90 A – Rated for a maximum continuous current under specific load conditions when controlling different types of loads.Horsepower @ Three Phase - Various Voltages (208V AC up to 600V AC): Ranges from not rated up to maximum motor power capacity of 50 hp depending on voltage level which specifies the voltage ranges compatible with this device's operational capacityInput Control Type: 2-Wire system uses two wires for power supply and control
