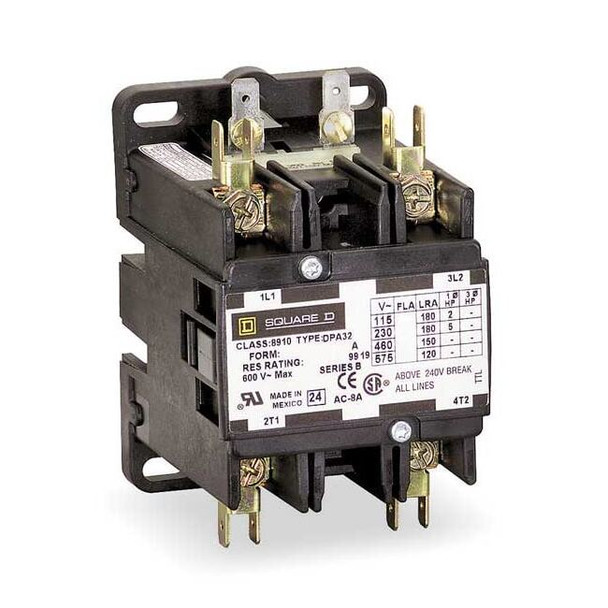

Square D 8910DPA92V02

The SQUARE D - 8910DPA92V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, either allowing or interrupting power supply based on need. This tool is commonly used for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.Action: Non-Reversing – The contactor maintains a constant current flow direction.Coil Voltage: Rated for operation at a coil voltage of 120V AC.Depth: Extends 4.37 inches into the mounting surface or enclosure.Enclosure Type: Open – There's no protective casing around this contactor.Frequency: Specified to operate within the frequency range of 50/60 Hz.Full Load Amps-Inductive & Resistive: Rated for maximum currents up to 90 A (inductive loads) and 120 A (resistive loads).Horsepower @ Single Phase - Rated for use with motors with a horsepower rating up to a maximum limit as specified: Single Phase - Up to max. HP:7½ @120v, max. HP:20 @230v & @240v
