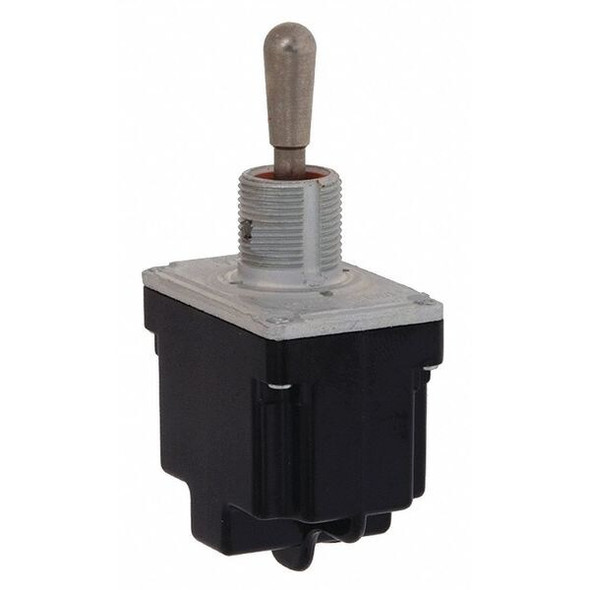

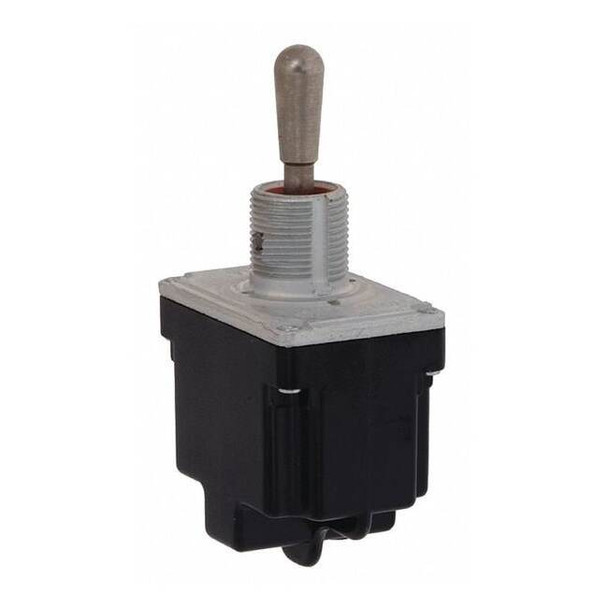

Toggle Switch, DPDT, 3-Position, Lever, IP67, MIL-DTL-3950 Rated 2TL1-56

Honeywell MICRO SWITCH TL Series Toggle Switches are rated for operation in environments where MIL-DTL-3950 and similar standards are specified. This DPDT (Double Pole Double Throw) toggle switch features a standard lever actuator and is constructed with a bonded seal between the toggle lever and bushing, as well as between the cover and case. The switch offers three positions (ON-ON-ON), momentary ON/maintained ON/maintained ON functionality, and is built to withstand mechanical shock, vibration, dust, splashing, or hose-directed water. Key Features: - Contact Ratings: 10A @ 125V AC / 250V AC; 18A @ 28V DC - Actuator: Silver metal standard lever; length 0.67 in - Contact Form: DPDT (Double Pole Double Throw) - Positions: Three-position operation (Momentary On/Maintained On/Maintained On) - Mounting Hole Diameter: 0.47 in; overall dimensions—height: 2.49 in, width: 0.89 in, depth: 1.13 in - Terminals: Screw type with six connections - Resistance Properties: Meets applicable test criteria for shock and vibration resistance per product specifications - IP Rating: IP67 for protection against dust and water ingress - Operating Temperature Range: -85°F to +160°F - Standards Met: CE, CSA, MIL-DTL-3950, UL Listed
