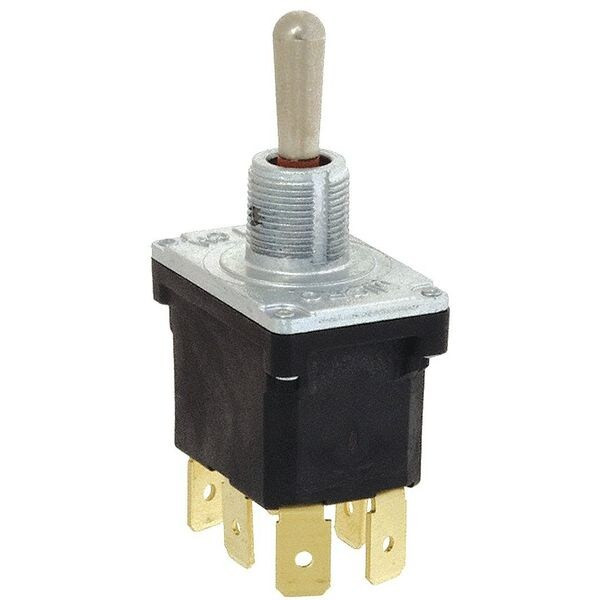

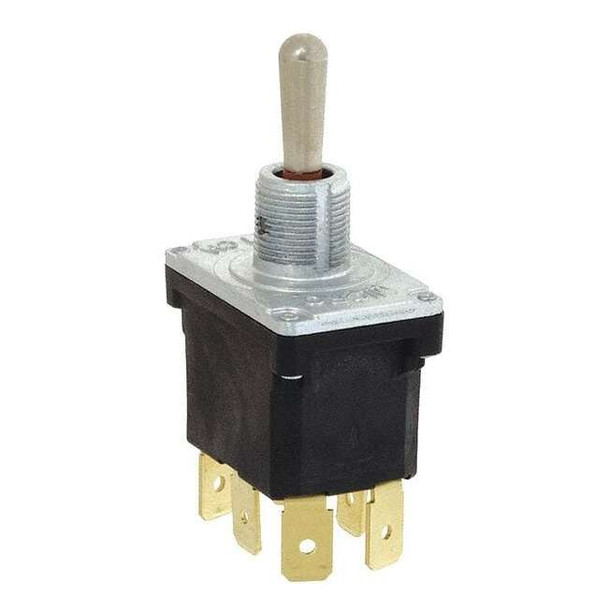

Toggle Switch - DPDT, 10A, IP67-IP68, Metal Lever, Quick Connect Terminals 32NT91-8

Honeywell NT Series Toggle Switch is a double pole, double throw (DPDT) switch suitable for applications within the specified environmental ratings. It features a maintained on/maintained on function with six quick connect terminals and is constructed with a flat base and standard metal lever actuator. The switch includes sealing between the toggle lever and bushing, as well as between the cover and case, constructed with features intended to provide resistance as specified by IP67/IP68 and NEMA ratings. Key Features: - Contact Ratings: 10A at 125V AC or 250V AC; 18A at 28V DC - Maximum horsepower rating: 1/2 hp - Actuator: Silver-colored metal lever; length of 0.67 in - Mounting Hole Diameter: 0.47 in; stem thread size of 15/32-32 UNS-2A - Environmental Ratings: IP67/IP68 ingress protection; NEMA types 3, 3R, 4, and 13 - Operating Temperature Range: -85°F to +160°F (-40°C to +71°C) - Resistance Properties: Rated for dust ingress protection (IP67/IP68), shock resistance per product specifications; rated watertight per IP67/IP68; rated for operation within -85°F to +160°F (-40°C to +71°C); rated for vibration exposure as specified by manufacturer testing. - Terminals: Quick connect tab type with six connections (DPDT configuration) - Overall Dimensions: Height—2.51 in; Width—0.62 in; Depth—1.12 in - Certifications: CE marked; CSA and UL listed
