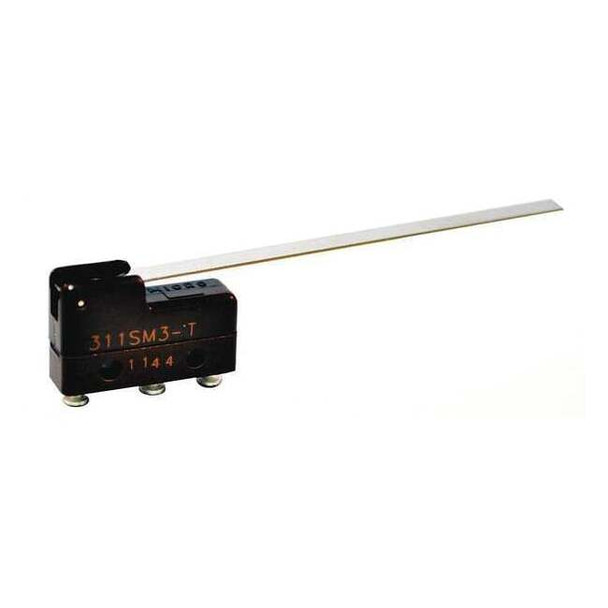

Miniature Snap Action Switch - SPDT, Lever Actuator, 5A, SM Series 311SM3-T

The Honeywell Miniature Snap Action Switch from the SM Series is a compact, lightweight switch rated for precise actuation within specified parameters. It features a lever actuator with high repeatability and bifurcated gold contacts to provide parallel redundancy within the switch. The unit supports both AC and DC switching up to 5A at 250V, making it suitable for various electrical control tasks where actuation within the specified electrical ratings is needed.Key Features:- Contact Form: SPDT (1NO/1NC) configuration- Actuator Style: Straight lever, 1.77" length- Electrical Ratings: 5A @ 125–250V AC; 2.5A @ 28V DC- Body Material: Phenolic construction; overall dimensions of 0.8" (W) x 0.25" (D) x 0.5" (H)- Mounting Dimension: Center mounting holes spaced at 0.38"- Terminal Type: Solder turret connection- Operating Force: Maximum of 0.53 ozf; release force of 0.07 ozf- Travel Parameters: Pretravel max of 0.31", overtravel of approximately 0.06", differential travel max of about 0.11"- Temperature Range: -67°F to +257°F operating range- Standards Compliance: CE, CSA, ENEC, FAA-PMA, MIL‑PRF‑8805, UL Listed
