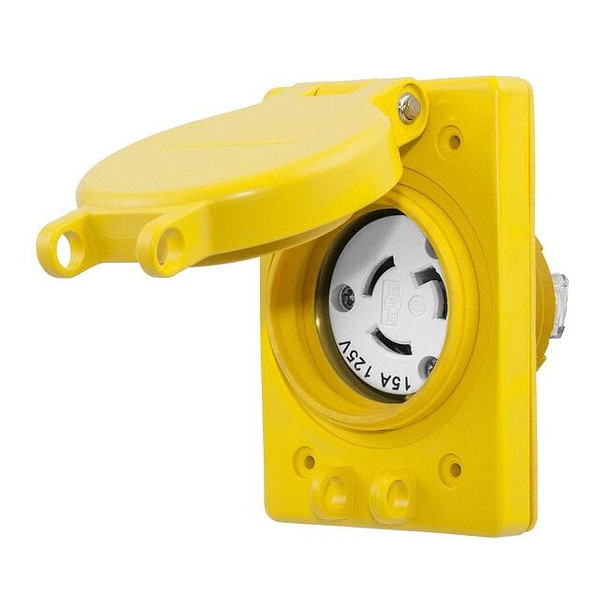

Hubbell Wiring Device-Kellems HBL65W47

The HUBBELL 15A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for use in industrial environments. Including a flip-up cover and an impact- body, this receptacle accommodates NEMA L5-15R configurations and supports single-phase, 2-pole, 3-wire circuits at 125V AC. It can be installed in locations requiring moisture resistance and durability.Key Features of the HUBBELL 15A Watertight Flanged Locking Receptacle: Current/Voltage Rating: Rated for 15 amps at 125V ACNEMA Configuration: L5-15R locking type with polarized designMounting Type: Flush mount with rectangular flangeCasing Materials: Impact- PBT body; elastomer housing and insulation; corrosion- metallic componentsCover Type: Flip-up lid is designed to limit water ingress when closedWire Connection: Screw terminals accept #18 AWG to #10 AWG wire sizesNEMA Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6, and 6P requirements for water and dust ingress protectionIP Rating: IP69K rated for high-pressure washdown environmentsOperating Temperature Range: -40°F to +140°F (-40°C to +60°C)Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 specifications
