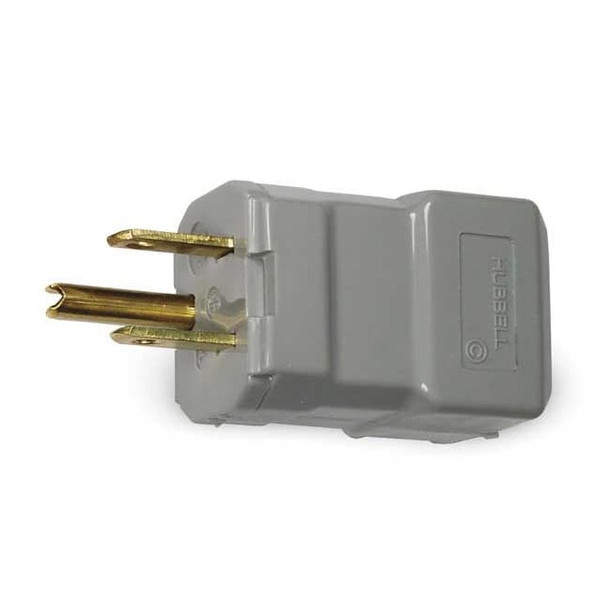

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL5965VGY

The HUBBELL 3 Wire Commercial Straight Blade Plug is a straight blade plug suitable for industrial and commercial applications, rated for 15 amps and 125V AC. It includes a hinged one-piece body to facilitate assembly, with screw terminals for wire connections. The plug accommodates three wires and is grounded; compatible with #18 AWG to #12 AWG stranded copper wire.Key Features of the HUBBELL 3 Wire Commercial Straight Blade Plug: Amperage/Voltage Rating: Rated for 15 A at 125 V ACNEMA Configuration: 5-15P (2 poles, 3 wires)Body Material: Impact modified nylon housing; polycarbonate housing color grayCord Clamp Material: Noryl (polyphenylene oxide), accepts cord diameters from 0.22 in to 0.66 inConnection Type: Screw terminals with captive assembly screwsBlade/Contact Materials: Solid brass blades (.060" brass contacts); steel ground screw (green finish)Cable Accommodation: For use with #18–#12 AWG stranded copper wire onlyOperating Temperature Range: -40°C to +75°C continuous operation without impactCorrosion- components; Flammability rated HB or better per UL94Standards Compliance: CSA Certified C22.2 No.42 File 280C, NEMA WD-6 Compliant, UL Listed to UL498 File E1706
