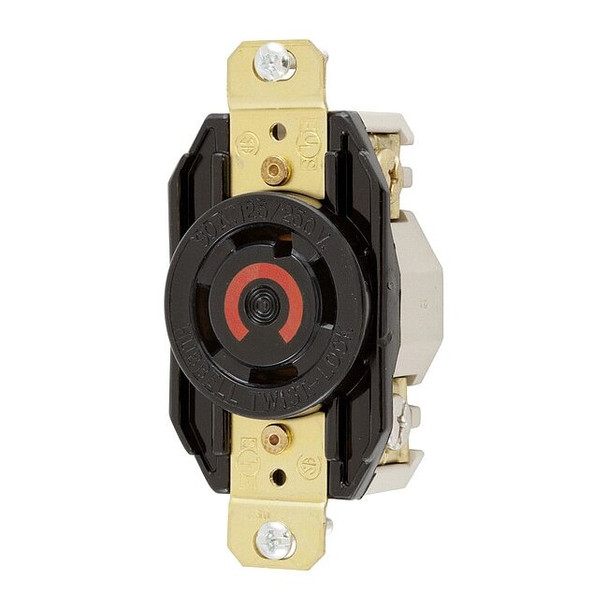

Hubbell Wiring Device-Kellems HBL2710

The HUBBELL 30A Twist-Lock Receptacle L14-30R is a locking receptacle rated for use in industrial applications where a secure electrical connection is needed. It includes a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and supports single-phase, 3-pole, 4-wire configurations at 125/250V AC. The device is constructed with nylon housing and brass contacts.Key Features of the HUBBELL 30A Twist-Lock Receptacle L14-30R: Amperage/Voltage: Rated for 30 A, 125/250V AC operationNEMA Configuration: L14-30R (3-pole, 4-wire)Mounting Type: Flush mount with included screw mounting hardwareMaterial Construction: Nylon polyester base and housing; all-brass mounting and grounding system enhances corrosion resistanceWire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals; wire restraint recess reduces terminal loosening riskDielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating or betterOperating Temperature Range: -40°C to +75°C (without impact), maximum continuous temperature rise of 30°C at full rated current after overload cyclesNEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 suitability for indoor dry locations unless otherwise protectedStandards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL498 standards
