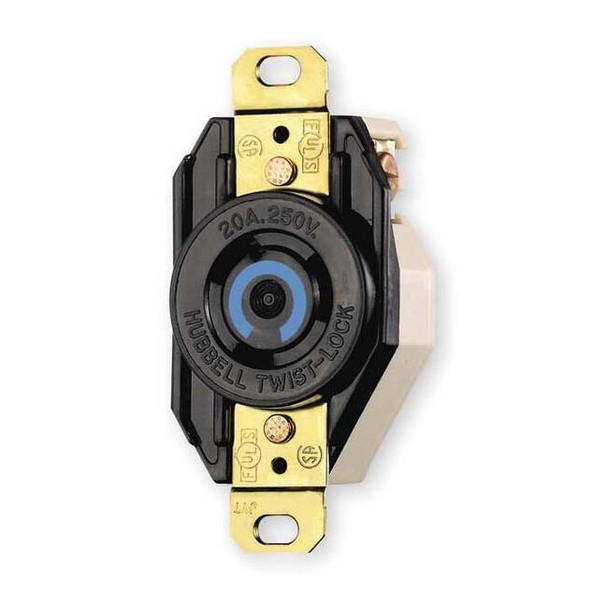

Hubbell Wiring Device-Kellems HBL2320

The HUBBELL 20A Twist-Lock Receptacle L6-20R is a locking receptacle suitable for use in industrial environments where locking electrical connections are specified. This flush-mount, single-gang device includes a twist-lock mechanism that secures the connection and accommodates 2-pole, 3-wire configurations at 250V AC. It is constructed with a nylon face and elastomer housing; intended for indoor dry locations.Key Features of the HUBBELL 20A Twist-Lock Receptacle L6-20R: Amperage/Voltage: Rated for 20 A at 250V ACNEMA Configuration: L6-20R (2-pole, 3-wire)Material Construction: Nylon face; elastomer housingContact/Spring Material: Brass contacts and springsWire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminalsMounting Type: Flush mount with included screw mounting hardwareOperating Temperature Range: -40°C to +75°C (without impact)Flammability Rating: UL94 V-2 or better per CSA standardsDielectric Strength: Rated to withstand minimum of 2,000V; listed as current interrupting at full rated current
