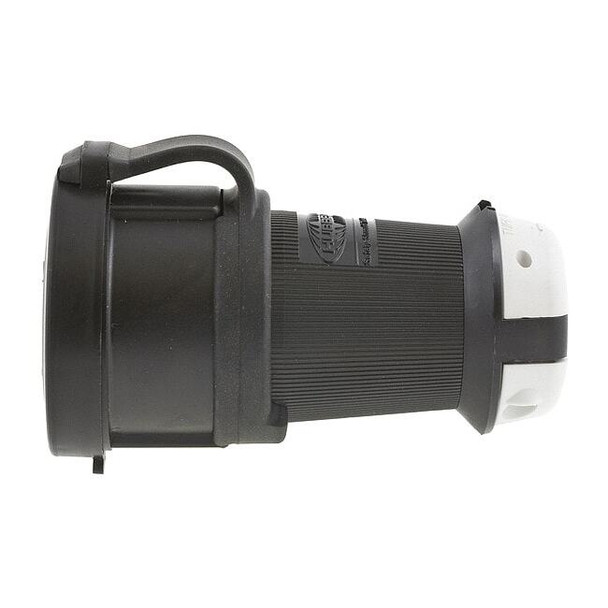

Hubbell Wiring Device-Kellems HBL2813SW

The HUBBELL 30A Watertight Twist-Lock Connector (L21-30R) is a locking connector with a protective housing and rated watertight per IP66 suitable for use in industrial and commercial electrical applications. Rated for 120/208V AC three-phase power, it features a four-pole, five-wire configuration with screw terminal wire connections. The connector includes a housing and press-on cap included to maintain its watertight seal when not in use.Key Features of the HUBBELL 30A Watertight Twist-Lock Connector: Current/Voltage Rating: 30 A, 120/208V ACNEMA Configuration: L21-30R; Three phase; Four poles, five wiresHousing Material: Impact modified PBT (Valox); insulation material is thermoplasticCord Size Compatibility: Accepts cables from 0.35 in to 1.15 in diameter; maximum wire size of 8 AWG and minimum of 16 AWGNEMA Enclosure & IP Rating: Type 12, Type 4, Type 4X; IP66 rated for moisture resistanceOperating Temperature Range: -40°C to +75°CFlammability & Dielectric Strength: UL94 V-0 flammability rating; dielectric strength up to 2000VScrew terminals with stainless steel screws Closure cap included
