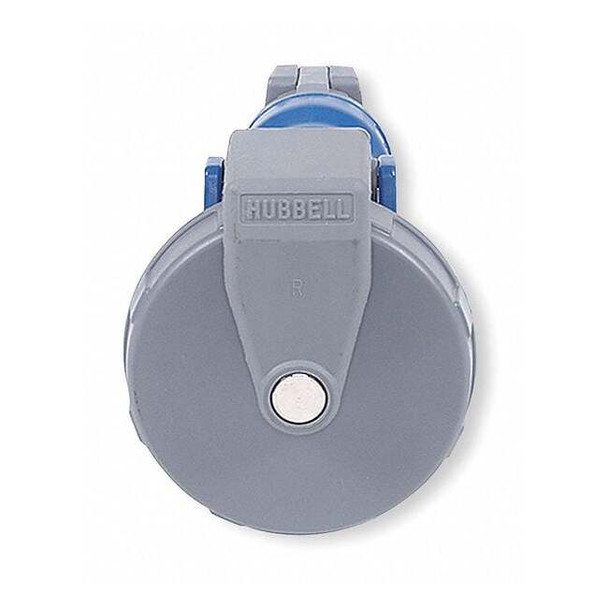

Hubbell Wiring Device-Kellems HBL320C6W

The HUBBELL IEC Pin and Sleeve Connector is an IP68/IP69K ingress protection rated electrical connector suitable for use in industrial settings requiring 20A, 250V AC single-phase operation. It features a Zytel 801 nylon body with an insulated non-metallic housing, offering resistance to corrosion, impact, and moisture. It is compatible with the HBL Heavy Duty series and meets multiple industry standards including CSA Certified LR280C and UL Classified to IEC 60309-1/2.Key Features of the HUBBELL IEC Pin and Sleeve Connector: Current/Voltage Rating: Rated for 20 amps at 250V AC single-phase operationBody Material: Constructed from Zytel 801 nylonEnvironmental Protection: IP68/IP69K ingress protection ratingsCord Grip & Mounting: External cord gripWire Connection Type: Pressure terminal screws suitable for #14 AWG to #10 AWG conductors (3-wire grounding)Temperature Range: Operates between -40°C (minimum) to +75°C (maximum continuous)Housing Features: Color-coded blue housing for voltage identification; spring-loaded self-closing gasketed cover; shrouded contactsStandards Compliance: CSA Certified LR280C, UL Listed E146033, conforms to IEC 60309-1/2 requirements
