Wiring

The HUBBELL EdgeConnectâ„¢ Duplex Straight Blade Receptacle is a 20A, 125V AC electrical outlet rated for indoor industrial use. It features a screwless, push-in wire termination system that enables tool-free installation via push-in wire termination...

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex electrical outlet suitable for specification grade applications. This receptacle features a standard NEMA 5-20R configuration, supports both back and side wiring methods, and...

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is a traditional duplex outlet designed for use in industrial settings. It features a rated as weather construction and is rated for 20 amps at 125 volts AC. The receptacle supports both back and side...

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex outlet rated for extra heavy duty and specification-grade applications. It includes weather construction and is intended for use in industrial environments. The receptacle...

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single,...

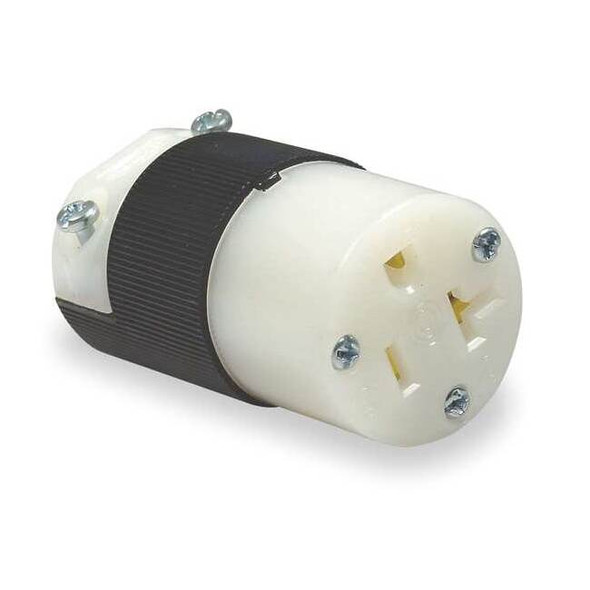

The HUBBELL 5-20R Straight Blade Connector is a connector body rated for use with 20A, 125V AC circuits. It features a straight blade configuration (NEMA 5-20R) and accommodates wire sizes from #18 AWG to #10 AWG using screw terminals. The housing is...

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Non-Conductive Housing, Voltage Rating...

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Non-Conductive Housing, Voltage...

• Hinged one piece body design for easy assembly• Powerful, offsetting cord grips clamp on individual conductors• Assembly screws are captive and will not fall out while wiring

The HUBBELL 5-20R Straight Blade Connector is a 20A, 125V connector suitable for use in industrial and commercial electrical applications. It features an assembled using a hinged one-piece body design for straightforward assembly and utilizes screw...

• Impact construction• Backwired terminations for ease of installation• #8-32 Multiple drive terminal screws• Mounting screws included

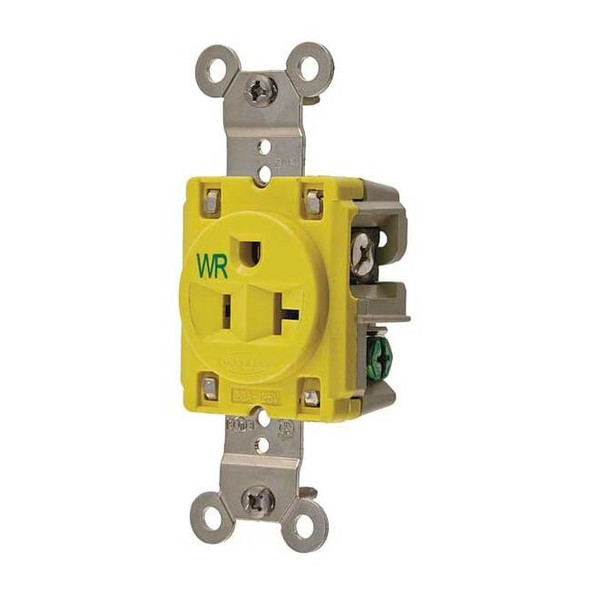

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Housing Color Yellow, Housing Material Nylon (Face), Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration...
