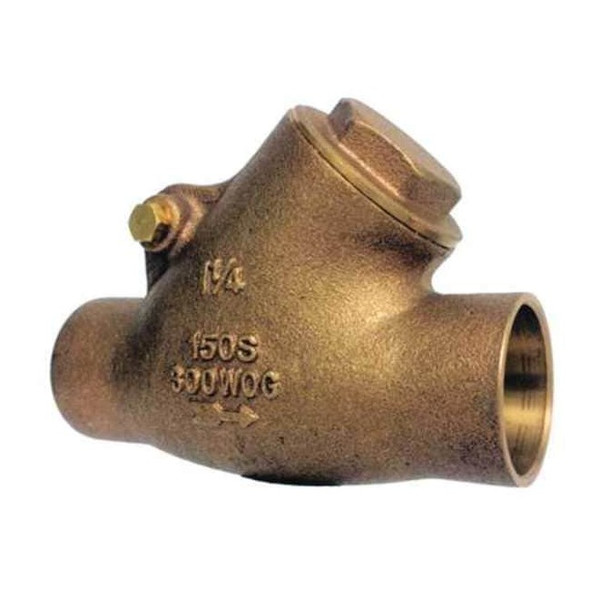

Milwaukee Valve 1-2" Solder Bronze Swing Y Check Valve 1509Y 1-2"

The MILWAUKEE VALVE 1509Y 1/2 in. solder bronze swing Y check valve is a general purpose one-way valve for one-way flow applications in piping systems. It features a Y-style bronze body with a swing check mechanism, sweat x sweat female connections, and Cv: 7.2. Specified media include chemicals, natural gas, steam, and water. Mounting orientation: horizontal or vertical. Key Features: 1/2 in. nominal valve size with 1/2 in. sweat x sweat connections Swing Y check design with single flow path Bronze body, bronze seat, and bronze seal with brass check mechanism Cracking pressure: 0.5 psi Flow rate: 10 gpm; Cv: 7.2 Maximum water pressure: 300 psi at 150 Degrees F Maximum steam pressure: 150 psi WSP Operating temperature range: -20 Degrees F to 425 Degrees F Mounting orientation: horizontal or vertical Overall length: 3 in.; overall height: 2-1/4 in.; width: 5/8 in. Standards: MSS SP-80, Type 3
