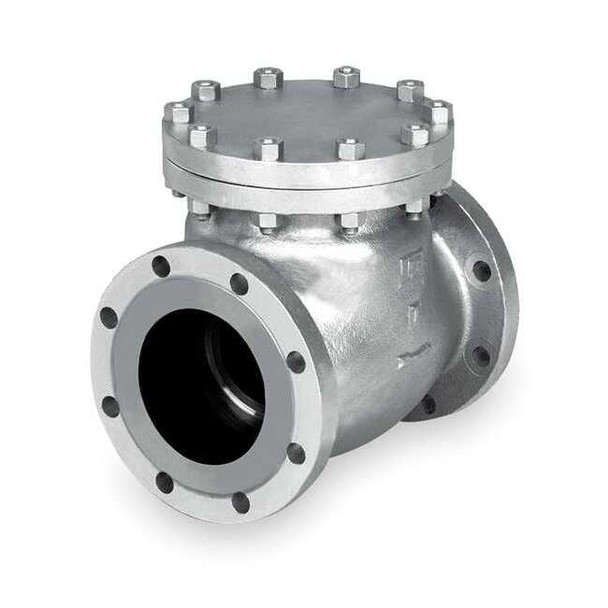

Milwaukee Valve 2" Flanged Cast Steel Swing Check Valve 1570 CB2 2"

The MILWAUKEE VALVE 1570 CB2 is a 2 in flanged cast steel swing check valve with an inline body design. It features a hinged swing check mechanism for one-direction flow applications. Rated for steam and water service, it is for horizontal mounting in piping systems. Key Features: 2 in nominal valve size with flange x flange connections Cast steel body with steel check mechanism Swing check design with inline body style and single flow design ANSI flange class: Class 150 Media: steam, water Cracking pressure: 2 psi Flow capacity: 137 gpm; Cv: 156 Full flow: yes Maximum water pressure: 285 psi at 100 degrees F Maximum steam pressure: 200 psi WSP Operating temperature range: -20 degrees F to 1,000 degrees F Seat and seal material: cobalt chrome alloy Overall length: 8 in; overall height: 6-9/64 in; width: 5.98 in Standards: API 8 Trim (Cr-13 Stem/Disc Face HF CoCr Seat Face), ASTM A216-WCB
