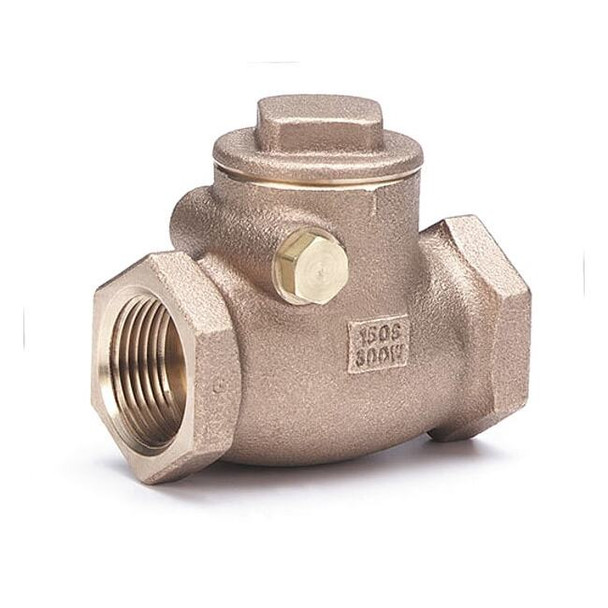

Swing Check Valve, 510T Series, 1 in, FNPT x FNPT, Inline, Bronze 510T 1

The MILWAUKEE VALVE 510T is a 1 in. swing check valve with an inline bronze body and FNPT x FNPT threaded connections. It uses a hinged swing mechanism for one-direction flow and backflow control applications in general-purpose piping systems handling gas, oil, steam, and water. This valve features a full-flow design, a 31 gpm flow rating, and a Cv of 31. Key Features: Valve type: Swing check valve with inline body design Size: 1 in. nominal valve size with 1 in. FNPT x FNPT connections Body material: Bronze Check mechanism: Swing with PTFE check mechanism material Seal material: PTFE Seat material: Bronze Flow rating: 31 gpm Cv: 31 Cracking pressure: 0.750 to 1.000 psi Pressure ratings: 300 psi maximum operating pressure; 300 psi at 150 degrees F maximum water pressure; 150 psi WSP maximum steam pressure Temperature range: -20 degrees F to 406 degrees F Mounting orientation: Horizontal or vertical Overall length: 3.25 in. Standards: ASTM B16, ASTM B62, MSS SP-80
