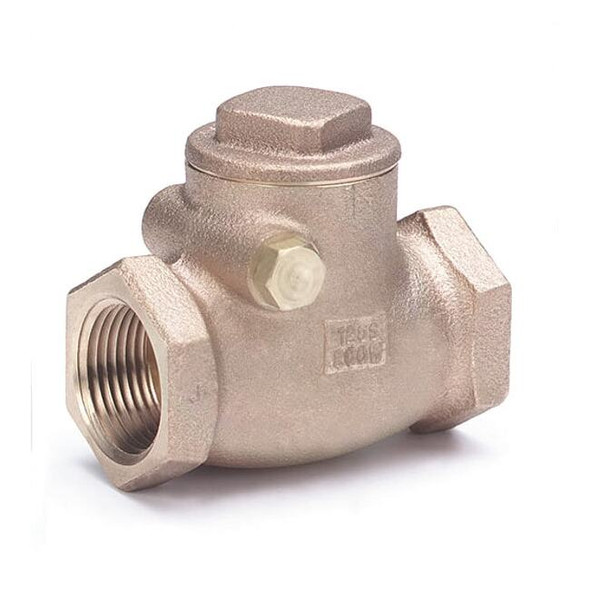

Swing Check Valve, 510T Series, 3-4 in, FNPT x FNPT, Bronze Body 510T 3/4

The Milwaukee Valve 510T is a 3/4 in inline swing check valve with FNPT x FNPT threaded connections. It uses a hinged swing mechanism and is intended for one-direction flow applications and reverse-flow checking. This valve is listed for gas, oil, steam, and water piping applications. Key Features: Bronze body with bronze seat Swing check mechanism with PTFE check mechanism material and PTFE seal material 3/4 in nominal valve size with female NPT connections on both ends Inline body design with single flow path Flow capacity: 18 gpm; Cv: 18 Cracking pressure: 0.750 to 1.000 psi Maximum operating pressure: 300 psi Maximum water pressure: 300 psi at 150 degrees F Maximum steam pressure: 150 psi WSP Operating temperature range: -20 degrees F to 406 degrees F Overall length: 2.63 in Mounting orientation: horizontal or vertical Standards: ASTM B16, ASTM B62, MSS SP-80
