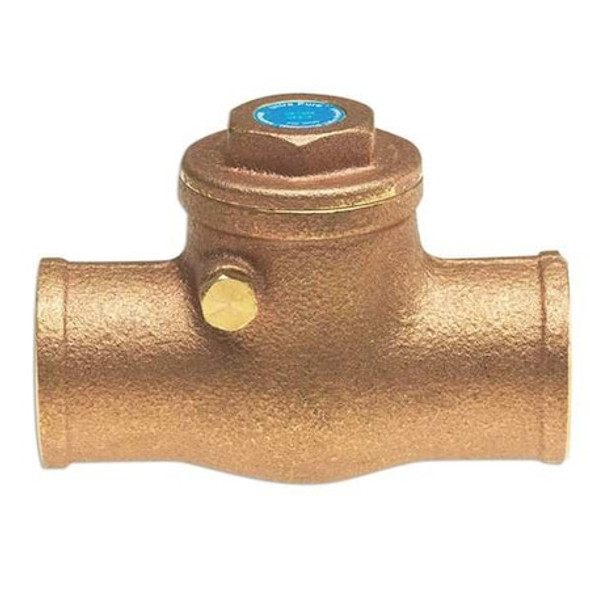

Milwaukee Valve 2" Sweat Low Lead Bronze Spring Check Valve UP1509 2

The MILWAUKEE VALVE UP1509 is a 2 in low lead bronze swing check valve with an inline body and sweat x sweat connections. It is intended for one-way flow in general purpose service with gas, oil, and water, using a swing check mechanism intended to restrict reverse flow. This valve is rated for horizontal mounting with pressure coming from under the disc and features NSF 61 and NSF/ANSI 372 listings. Key Features: 2 in nominal valve size with 2 in female sweat connections on both ends Inline swing body design with single flow path and standard non-silent operation Bronze body, bronze check mechanism, and bronze seal material Seat material: brass Flow capacity: 131 gpm; Cv: 131 Cracking pressure: 0.750 to 1.000 psi Maximum pressure: 300 psi non-shock CWP; maximum water pressure: 300 psi at 150 degrees F Operating temperature range: -20 degrees F to 200 degrees F Mounting orientation: horizontal; mounting position: pressure coming from under the disc Overall length: 6 1/8 in; overall height: 2 13/16 in Standards and certifications: NSF 61, NSF/ANSI 372
