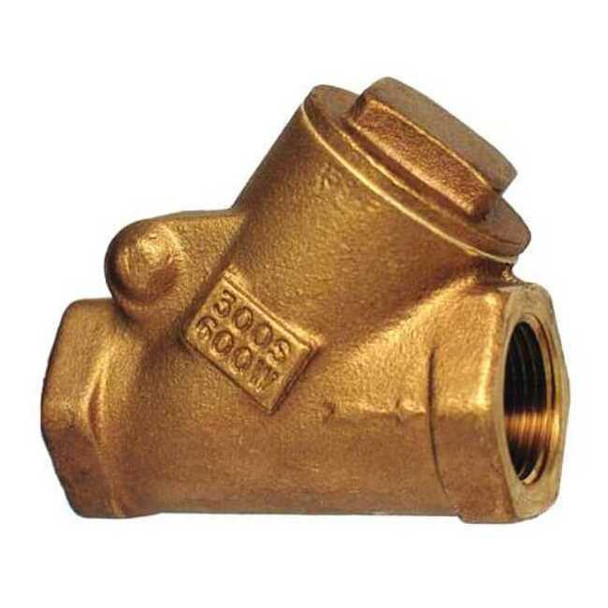

Milwaukee Valve 3-4" FNPT Bronze Swing Y Check Valve 515Y 3-4"

The MILWAUKEE VALVE 515Y 3/4 in. FNPT bronze swing Y check valve is a general-purpose check valve with a Y-style body and swing mechanism for one-way flow control. It is designed for use with gas, oil, steam, and water, with a full-flow Y-pattern design for one-way flow in compatible threaded piping systems. Key Features: 3/4 in. nominal valve size with FNPT x FNPT threaded connections Y-pattern swing check design with single flow path Bronze body with cast bronze construction, including bronze check mechanism, seat, and seal Rated flow: 18 gpm with a Cv of 13 Cracking pressure: 0.5 psi Pressure ratings: 300 psi WOG, 150 psi SWP, 300 psi at 150 degrees F water pressure, and 150 psi WSP steam pressure Operating temperature range: -20 degrees F to 425 degrees F Mounting orientation: horizontal or vertical Valve series: 515Y Overall dimensions: 2.63 in. length, 2 3/8 in. height, 7/8 in. width Standards: meets multiple applicable ASTM and MSS standards
