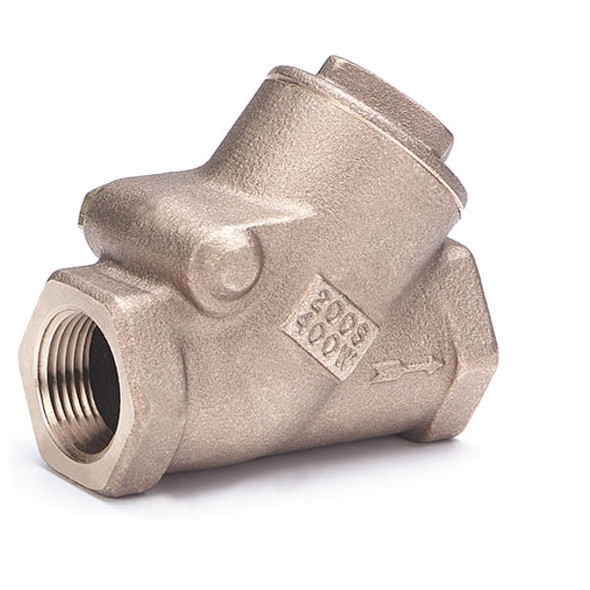

Check Valve, 508 Series, Y Swing, 1 in, FNPT x FNPT, Bronze Body 508 1"

The MILWAUKEE VALVE 508 is a 1 in. swing Y check valve with a bronze body and FNPT x FNPT threaded connections. It uses a swing check mechanism in a Y-style body and is configured for one-way flow applications in piping systems with gas, oil, steam, or water media within listed ratings. This valve is designed for horizontal mounting and has a rated flow of 31 gpm. Key Features: Valve type: Swing Y check valve Body material: Cast bronze Check mechanism and seat material: Bronze Connection type: 1 in. FNPT x FNPT, female on both ends Cracking pressure: 0.500 to 0.750 psi Flow capacity: Cv 22; 31 gpm Pressure ratings: 400 psi WOG, 200 psi SWP/WSP, and 400 psi at 150 degrees F maximum water pressure Temperature range: -20 degrees F to 550 degrees F Mounting orientation: Horizontal Overall length: 3.69 in.; overall height: 2-1/2 in. Standard: MSS SP-80 Type 3 Check type: Standard swing check feature
