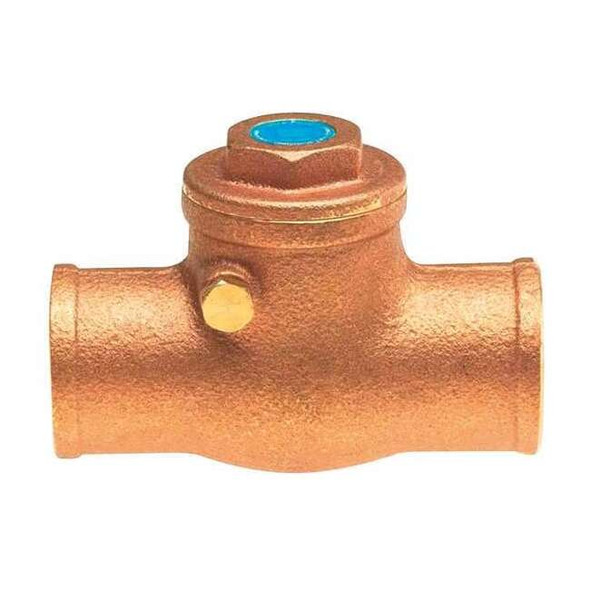

Swing Check Valve, 1509 Series, 3-4 in, Sweat x Sweat, Inline Swing, Bronze 1509 3/4"

The MILWAUKEE VALVE 1509 is a 3/4 in. swing check valve with an inline bronze body and sweat x sweat connections. It is for general-purpose gas, oil, steam, and water service, using a swing mechanism to allow flow in one direction and restrict reverse flow in piping systems. This horizontal-mount valve features a single-flow design, full-flow construction, and a 0.5 to 0.75 psi cracking pressure. Key Features: Valve type: Swing check valve with inline swing body design Body material: Bronze Check mechanism material: Brass Connection size: 3/4 in. x 3/4 in. Connection type: Sweat x sweat; solder connection Connection gender: Female x female Flow capacity: 18 gpm; Cv: 18 Pressure ratings: 200 psi WOG, 200 psi maximum water pressure, 125 psi WSP maximum steam pressure Temperature range: -20 degrees F to 406 degrees F Seat material: Bronze; seal material: Mounting orientation: Horizontal Overall length: 3.31 in. Standard: MSS SP-80 Type 3
