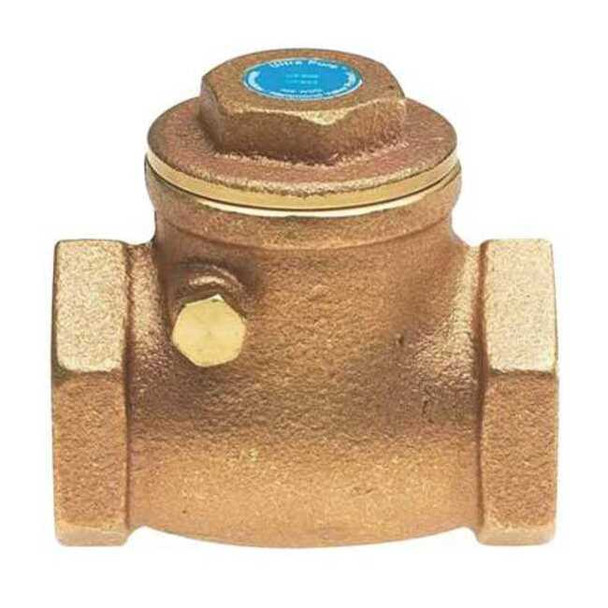

Milwaukee Valve 1-1-4" Threaded Low Lead Brass Swing Check Valve UP0967000114

The MILWAUKEE VALVE UP0967000114 is a 1-1/4 in. threaded swing check valve with an inline brass body and low-lead brass construction. It uses a hinged swing mechanism intended to permit flow in one direction and close upon reverse flow. This valve is used in applications requiring backflow reduction in general-purpose systems handling gas, oil, or water. It has female NPT connections on both ends, a full-flow design, and can be mounted in horizontal or vertical positions. Key Features: Valve type: Swing check valve with inline body design Size: 1-1/4 in. nominal valve size with 1-1/4 in. FNPT x FNPT connections Material: Low-lead brass construction with brass body, brass check mechanism, brass seal, and brass seat Flow capacity: 54 gpm with Cv of 54 Cracking pressure: 0.5 psi Pressure rating: 200 psi WOG; maximum water pressure 200 psi at 150 degrees F Temperature range: -20 degrees F to 150 degrees F Mounting: Horizontal or vertical; multi-positional Certifications/standards: NSF 61, NSF/ANSI 372 Dimensions: 2.72 in. overall length, 2-29/32 in. overall height, 1-3/4 in. width
