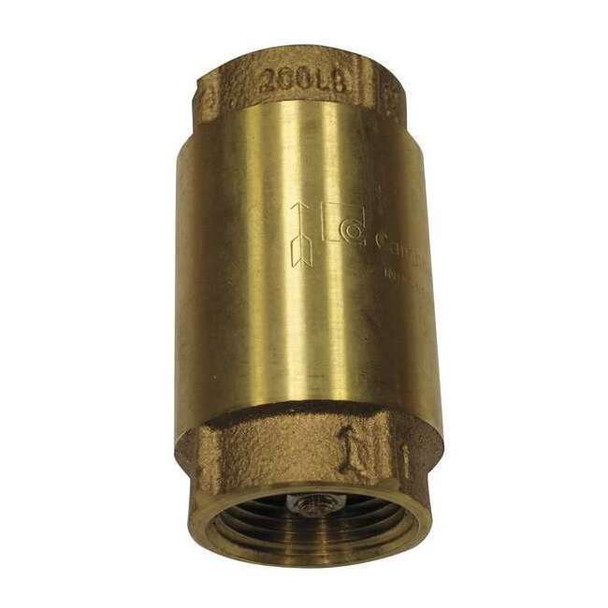

Campbell 3-4" FNPT Low Lead Brass Spring Check Valve CV-3TLF

The CAMPBELL CV-3TLF is a 3/4 in. spring check valve with an inline body and 3/4 in. FNPT x FNPT female threaded connections. It uses a spring-loaded poppet check mechanism for one-direction flow applications. For media: water. The valve features a lead-free red brass body, 0.5 psi cracking pressure, and a flow rating of 13 gpm. Key Features: 3/4 in. nominal valve size with 3/4 in. FNPT x FNPT connections Inline spring check valve design with poppet check mechanism Lead-free red brass body with 304 stainless steel check mechanism and spring Buna-N/NBR seal and bronze seat material For media: water Cracking pressure: 0.5 psi Flow rate: 13 gpm Maximum operating pressure: 200 psi WOG Operating temperature range: 35 to 158 degrees F Mounting orientation: horizontal or vertical Certification: NSF 61 Standard: ASTM B62 Overall dimensions: 3 in. L x 1-1/2 in. H x 1-1/2 in. W
