Door Hardware

Bottom pivot guide for bi-fold doors. The 7/16 In. diameter nylon base houses a 3/16 In. pivot with a hex head nut for adjustment. Manufactured of nylon and steel. Fits 1 In. to 1-3/8 In. bi-fold doors to 30 lb. each. 2 per card.

15/16" x 2-15/16" steel bottom bracket with nylon holder complete with wrench. Stamped steel base with an adjustable self-lubricating nylon bushing. 1 per card.

Bi-fold door snugger snaps into the center of the bi-fold door track. Manufactured of nylon and steel. The guide pin is inserted between the two springs in the nylon snugger housing. As the door is closed, the snugger slides in the track and makes...

Square top pivot guide for bi-fold doors. Spring loaded, 3/4 In. square glide or guide in a 3/8 In. plastic base mounts on the top edge of a bi-fold door that is 1 In. to 1-3/8 In. thick. 1 pair per card.

Nylon top pivot guide for bi-fold doors. Spring loaded 3/8 In. nylon pin inserts into the top pivot bracket above creating a pivot point for the bi-fold door. 1 pair per card.

Spring loaded pivot pin inserts into the pivot bracket above creating a top pivot point for the bi-fold door. Manufactured of nylon. 1 pair per card.

Combination set for bi-fold doors. Contains one pivot bracket that is floor and jamb mounted and has several adjustable positions for the pivot pin. Pivot base is nylon with a grooved cone shaped pivot bolt. 1 set per card.

Floor and jamb mounted bottom pivot bracket for bi-fold doors. For 1 In. to 1-3/8 In. doors - maximum door weight is 30 Lb. Hardware is included. 1 per card.

Latch engages and disengages by rotating round thumb-turn. Reversible side plates. Mortise installation. Mortise cutout size: 1-3/4" deep x 2-3/4" H.

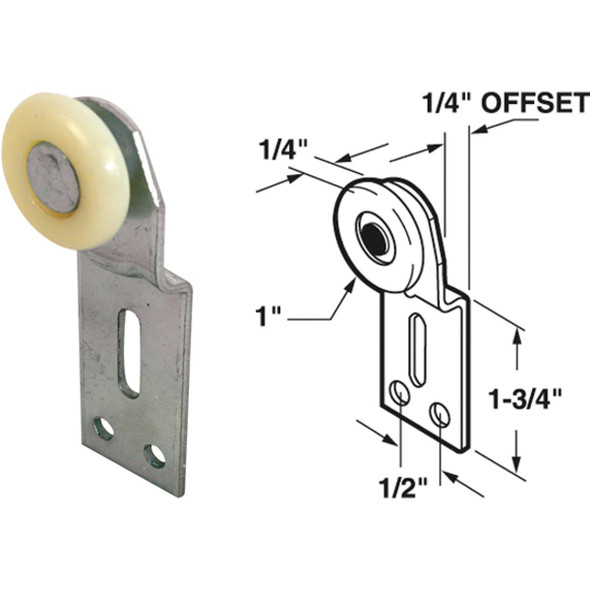

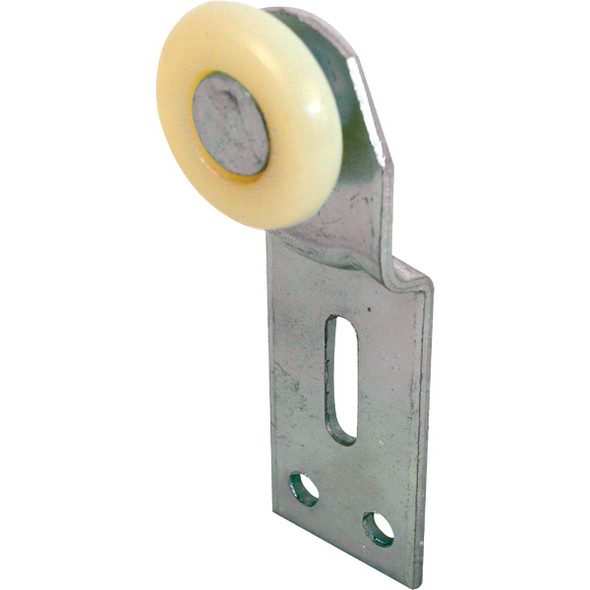

Single wheel, top hung, side mounting, offset adjustable bracket, round edge nylon ball bearing wheel. Fits 3/4" to 1-3/8" thick doors. Contains 2 roller assemblies and 6 No. 4 x 3/4" Phillips wood screws.

Paneled Mirror Door roller assembly with a concave nylon roller. The grooved ball bearing nylon roller provides a smooth ride as it slide back and forth. Adjusting screw is centered on the top of the housing and the tabs on either side will insert into...

For use on wood bi-fold closet doors. Brass-plated. The hinges have a -out that allows for non-mortise installation. 2 per card.
