Gast Vibration Isolator,185 lb. Max,5-16-18 AF633

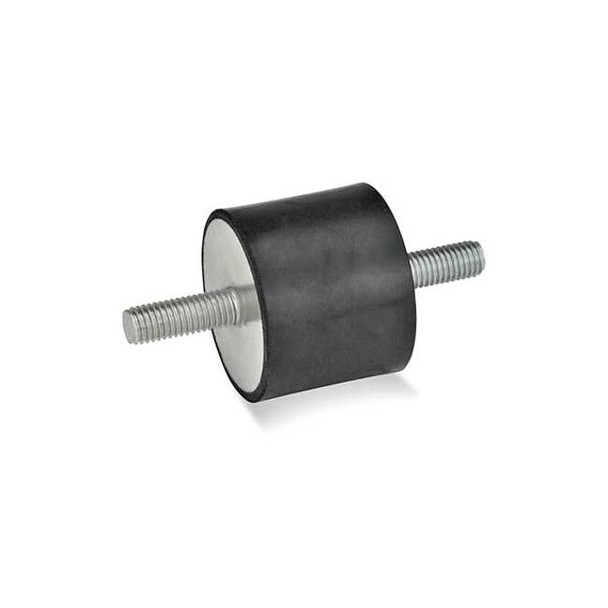

The GAST - AF633 is a vibration-isolating mount intended for vibration isolation in pneumatic systems or equipment. It features a cylindrical shape composed primarily of natural rubber, providing abrasion resistance. The mount uses a compression mounting style and connects via a threaded stud. Not -approved for food-grade environments. Not suitable for food-contact environments. Key Features: - Overall diameter: 1 1/2 in and height: 1 in, offering compact dimensions for installation in limited spaces. - Maximum load capacity: 185 lbf downward compression and 45 lbf sideways shear, indicating its load-bearing limits under axial and lateral forces. - Constructed from natural rubber isolator material with abrasion- properties to withstand physical wear. - Mounting style: Compression with one threaded stud and plain bore design, featuring a 5/16"-18 thread size and 0.63 in stud length made of clear zinc-plated, Grade 5 material; provides vibration isolation when mounted using compression mounting with a threaded stud. - Cylindrical shape with natural rubber isolator material designed for vibration isolation.
