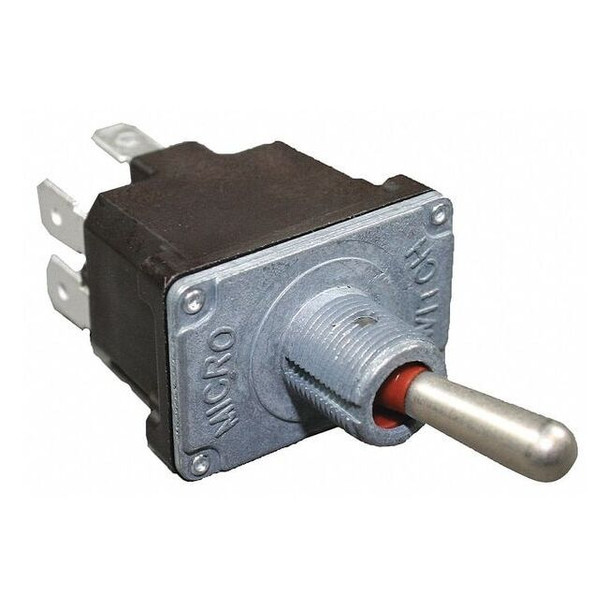

Toggle Switch - DPDT, Maintained On-On, 10A-250V, NEMA 4-IP67 Rated 2NT91-8

The Honeywell NT Series Toggle Switch is a DPDT (Double Pole Double Throw) switch suitable for applications within the specified ratings and environmental parameters. It features a maintained On-On circuit operation and is constructed with a metal standard lever actuator, step base, and quick-connect terminals. The switch includes sealing features intended to limit ingress of dust and water; rated per NEMA Types 3, 3R, 4 &13; IP67/IP68 standards. Key Features: - Contact Ratings: 10A @ 125V AC / 250V AC; 18A @ 28V DC - Contact Form: DPDT (Double Pole Double Throw) - Circuit Operation: Maintained On-On - Actuator: Metal bat-handle style; silver finish; length 0.67 in - Mounting: Bushing OD x L - 15/32 x 0.47 in.; mounting hole diameter - 0.47 in. - Terminal Type: Quick connect tab (0.25 in), six connections - Enclosure Ratings: NEMA Types 3, 3R, 4, &13; IP67/IP68 rated - Resistance Properties: Rated per NEMA Types 3, 3R, 4 &13; IP67/IP68 standards for protection against dust and water ingress; designed to operate within specified temperature range (-40°F to +160°F / -40°C to +71°C) - Operating Temperature Range: -40°F to +160°F (-40°C to +71°C) - Overall Dimensions (HxWxD): 2.49 x 0.89 x1.13 in. - Standards Compliance: CE marked; CSA & UL listed
