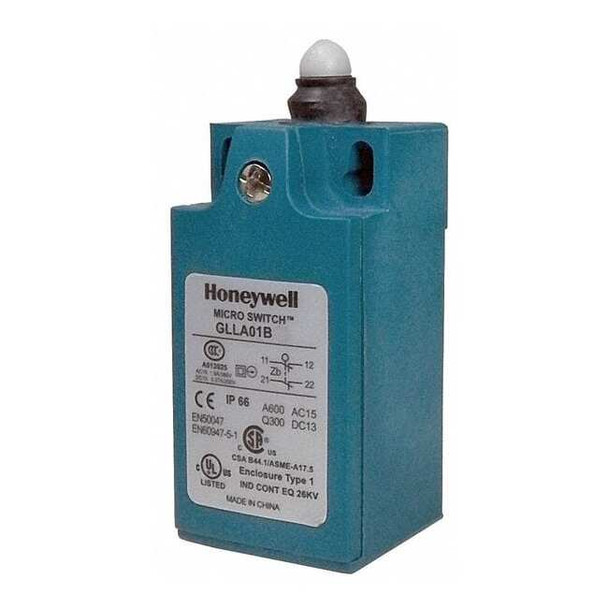

Limit Switch - GLL Series, SPDT, Plunger Actuator, 10A, IP65 Rated GLLA01B

Honeywell MICRO SWITCH GLL Series limit switch features a double insulated, compact plastic housing with specified body dimensions. This general purpose limit switch includes both NC and NO contacts in an SPDT configuration. The device is compatible with linear movement; incorporates direct opening action on the NC circuit. Key Features: - Contact Ratings: 10A at 300V AC; 10A at 250V DC - Actuator Style: Plunger, top-mounted; actuator length 1.48 in - Body Dimensions: Height 2.44 in, width 1.2 in, depth 1.22 in - Mounting: Surface mount with two horizontal holes (0.16–0.17 in diameter), spacing of 0.87 in center-to-center - Electrical Connection: Screw terminals; wiring entry via 1/2 in NPT - Travel Parameters: Differential travel of 0.06 in, pretravel of 0.11 in, overtravel minimum of 0.118 in - Operating Force/Torque: Maximum operating force/torque is 2.22 in-lb - Temperature Range: Rated for operation within the temperature range of 14°F to 176°F - Protection Ratings & Standards: IP65 rated enclosure; meets CCC, CE, cULus standards
