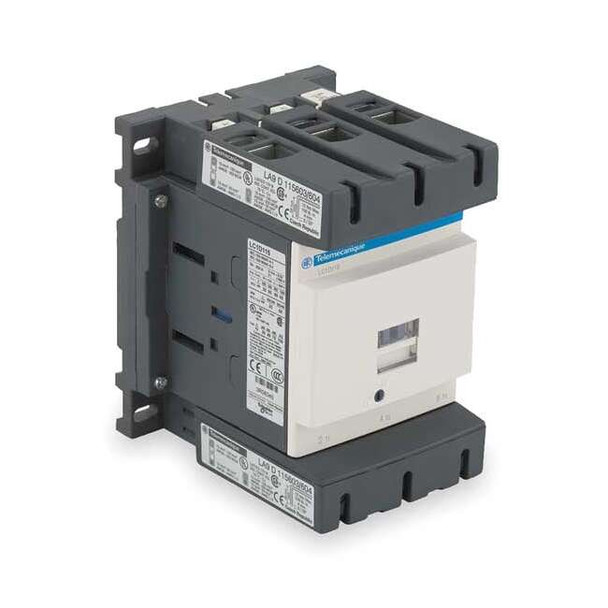

IEC Magnetic Contactor, 1NC-1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp LC1D115BD

The SQUARE D IEC Magnetic Contactor is a 3-pole, non-reversing power switch rated for operation within IEC-standard control circuits. It uses a 24 V DC coil to open and close main contacts and includes two auxiliary contacts (1NO/1NC) for signaling, all connected via screw clamp terminals. This TeSys Deca series device is intended for use in motor control and resistive-load applications and is configured as an IEC-style contactor without an enclosure. - Coil voltage: 24 V DC - Action: Non-Reversing - Poles: 3 - Main contacts: 3 normally open - Auxiliary contacts: 2 total (1NO/1NC) - Coil and contact configuration: 1NC/1NO auxiliary - Mounting: DIN Rail, Plate - Electrical connection: Screw Clamp - Enclosure: Without an enclosure; IP20 - Embedded suppression: Yes - Protective cover: Yes - Series: TeSys Deca (IEC) - Rated voltage: 1000 V AC, 300 V DC - Frequency: 50/60 Hz - Weight: 2.5 kg - Dimensions (approx.): Overall Height 6.22 in; Overall Depth 5.35 in; Overall Width 0.47 in - Max voltage rating: 1000 V AC - Rated making capacity: 1260 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
