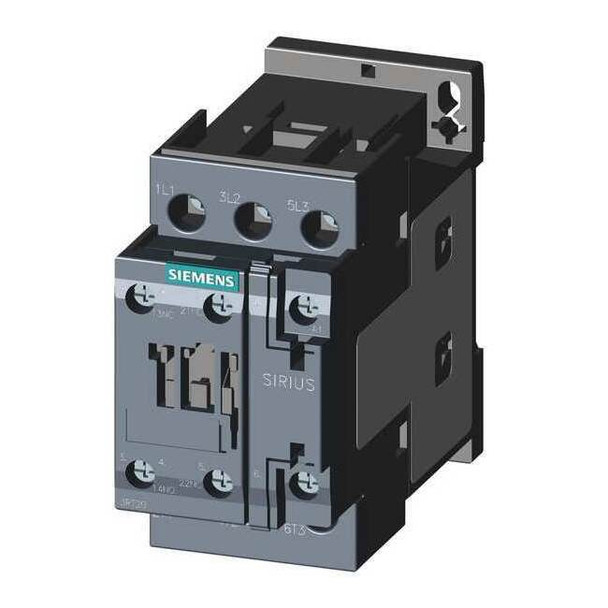

IEC Magnetic Contactor, 1NC-1NO, 110V-120V AC, 3 P, Non-Reversing, Screw 3RT20251AK60

The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It is a 3-pole, non-reversing unit with a 110–120 V AC coil and screw terminals. Auxiliary contacts are specified as 1 NO / 1 NC according to product specifications. It uses frame code S0 within the IEC contactor family. Key features - Coil voltage: 110–120 V AC - Action: Non-Reversing - Poles and main contacts: 3 poles; 3 normally open main contacts - Auxiliary contacts: 2 total; 1 NO / 1 NC according to product specifications - Contactor style/frame: IEC; Frame Size: S0 - Electrical connections: Screws - Enclosure rating: IP20 (if applicable) or specify no enclosure if accurate - Mounting: DIN Rail, Surface; Mounting Position: Vertical - Overall dimensions: Dimensions provided are approximate and based on standard models - Maximum voltage rating: Rated for operation up to the specified maximum voltage of 690 V AC - Power ratings: Power ratings are based on standardized testing conditions and may vary with application - Full load amps: 16 A inductive; 40 A resistive - Frequency: 50/60 Hz - Temperature range: -13 °F to 140 °F - Mechanical durability: 10,000,000 cycles - Number of auxiliary contacts: 2
