Qa1

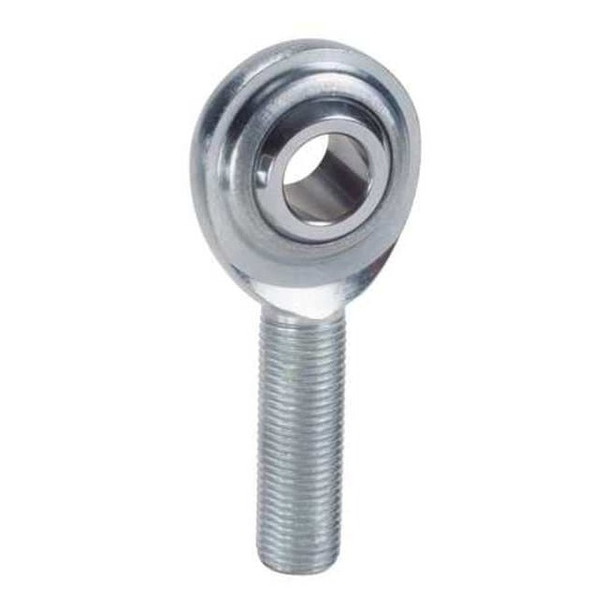

Qa1 Male Rod End,RH,10 mm Bore,M10-1.5 MCMR10
- SKU:
- ZO-G8628645
- UPC:
- 806990016287
- MPN:
- MCMR10
- Condition:
- New
- Weight:
- 0.15 LBS
- Shipping:
- Free Shipping
Frequently bought together:
Description
Spherical Rod End, System of Measurement Metric, Bore Diameter 10 mm, Head Outside Diameter 27 mm, Head Width 9.5 mm, Shank Thread Length 29 mm, Shank Thread Size M10x1.50, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 19.05 mm, Ball Material Alloy Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0.065/-0.012 mm, Housing Material Finish Chrome Plated, Inner Ring Width 14 mm, Maximum Ball Swivel 26 Degrees
View AllClose
Additional Information
Country of Origin: |
China |
Material: |
Carbon Steel |
Color: |
Brown |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Lead Time: |
Expected to ship in 1-2 business days |
