Asco 8210G004

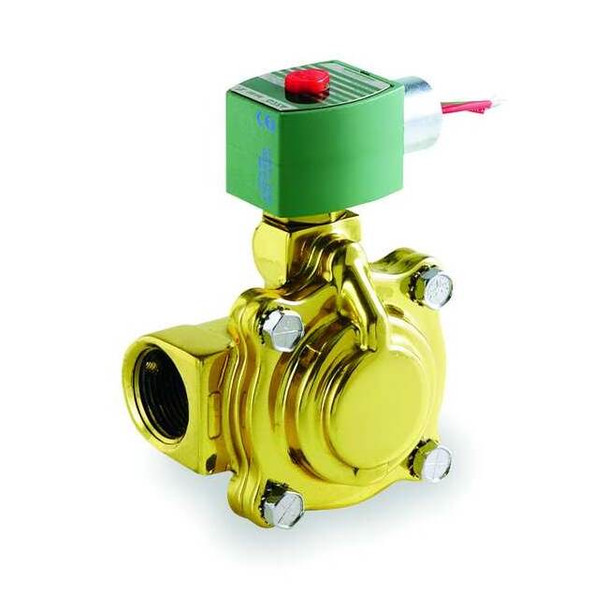

The ASCO 8210G004 is a pilot-operated solenoid valve designed for controlling the flow of air, inert gas, light oil, and water in pneumatic and hydraulic systems. It features a 2-way, 2-position flow-path configuration with a normally closed valve starting position. The valve body is constructed from brass and is equipped with an included coil and sealing components. It operates with a nominal 1-inch pipe size and NPTF inlet and outlet connection types; Mounting orientation: Vertical. UL Listed. Key Features: - Valve Design: 2-Way/2-Position, Normally Closed configuration - Valve Type: High Flow, Pilot Operated - Body Material: Brass - Nominal Pipe Size: 1 in; Orifice Diameter: 1 in - Connections: Inlet and Outlet NPTF threaded - Electrical: 24V DC voltage, 6.1 W coil wattage, 1/2 in conduit hub electrical connection - Coil enclosure: Without junction box; IP66-rated watertight - IP66 rating; suitable for indoor and outdoor use - Operating Pressure Differential: Minimum 5 psi, Maximum 125 psi for air/inert gas; Maximum 100 psi for light oil; Maximum 150 psi for water - Fluid Temperature: Maximum 180°F; Ambient Temperature Range: 14°F to 140°F - Included Components: coil and seal material (NBR) - Dimensions: Overall Height 5-5/8 in, Overall Length 3-3/4 in, Overall Width 3-3/8 in - Response time: 1 second (typical) - Mounting orientation: Vertical - Standards: UL Listed
