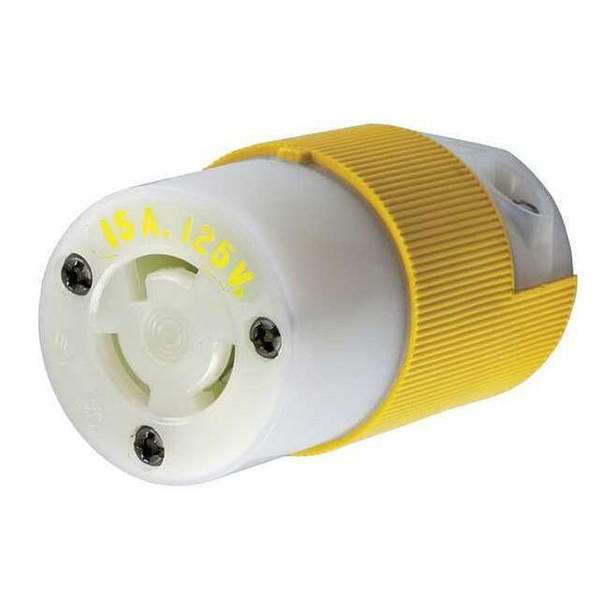

Locking Connector, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL47CM29C

The HUBBELL 15A Locking Plug L5-15P is a locking connector intended for use in indoor dry locations. It features a two-pole, three-wire configuration and is rated for 15 amps at 125 volts AC. The plug includes an individually molded face for each blade configuration and a roomy wiring chamber to accommodate various wire sizes.Key Features of the HUBBELL 15A Locking Plug L5-15P: Amperage/Voltage: Rated for 15 A, 125V ACNEMA Configuration: L5-15P (2-pole, 3-wire)Cable Range: Accepts cords from 0.230" to 0.720" diameter; supports #18 AWG to #10 AWG stranded copper wireHousing Material: Ribbed nylon housing; impact and ; textured surface for handlingContact Material: Nickel-plated brass contactsCorrosion componentsTemperature Rating: Operates continuously from -40°C up to +75°C (without impact)Dielectric Strength: Withstands minimum of 2,000VStandards Compliance: Certified to CSA C22.2 No.42, UL498 Listed, Federal Specification W-C-596Screw terminals: standard screw terminal wiring style for reliable connection
