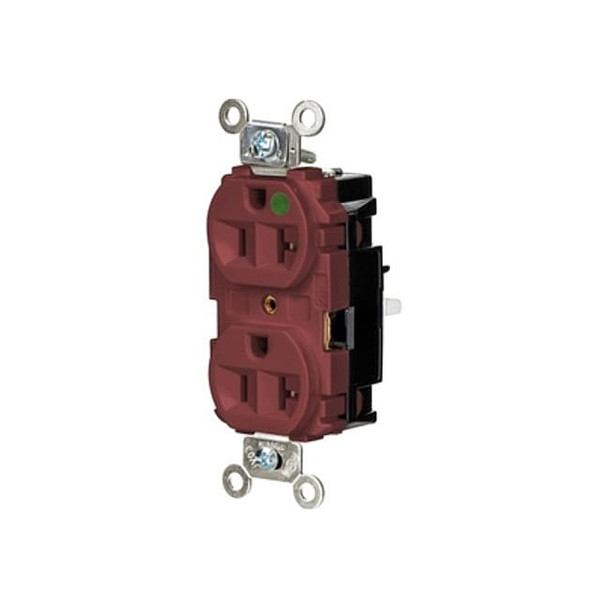

Hubbell Wiring Device-Kellems HBL8300STR

The HUBBELL Duplex Straight Blade Receptacle is a hospital grade, grounded electrical outlet rated for indoor use in dry locations. It features the EdgeConnectâ„¢ screwless termination system that enables wire installation by inserting the wire and pressing down the plunger.Key Features of the HUBBELL Duplex Straight Blade Receptacle: Current Rating: Rated for 20 A at 125V ACNEMA Configuration: 5-20R duplex type with polarized designWire Connection Type: Push-in, back-wired screwless termination suitable for 10–14 AWG wiresContact Material: Copper alloy contacts with triple and double wipe designResistance Properties: housingGrade & Standards: Hospital grade; meets CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA WD-6, UL 498 File No E2186 standardsMounting & Hardware: Surface mount type; includes mounting hardware; feed-through hub typeCircuit Features: Easy access split circuit tab; spring termination eliminates strand relaxationNEMA Enclosure Rating/IP Rating: NEMA Type 1 enclosure; IP20 rated for indoor use only
